FAQs
Q. What is my ball joint/sway bar link replacement part number?
IHC Suspension utilizes standard industry ball joints in our custom upper and lower control arms.
These wear-and-tear items are available at most local auto parts stores (Autozone, Orielly’s, NAPA, etc…)
1963-1987
- Upper Ball Joint – K6136
- Lower Ball Joint – K6117
1988-1998
- Upper Ball Joint – K6292
- Lower Ball Joint – K6445
- Sway Bar Link – K5342
1999-2007 (Classic)
- Upper Ball Joint – K6136
- Lower Ball Joint – K6541
- Sway Bar Link – K5252
- Camber Correction Adjustable UCA Ball Joint – K6540
2007-2016 CAST ARMS
- Upper Ball Joint – K6136
- Lower Ball Joint – K6541
- Sway Bar Link – K5342
- Camber Correction Adjustable UCA Ball Joint – K6540
2014-2018 ALUMINUM & STAMPED STEEL ARMS
- Upper Ball Joint – K6292
- Lower Ball Joint – K6541 + IHC Suspension Machined sleeve (SKU: IHC-0718-CON)
- Sway Bar Link – K5342
- Camber Correction Adjustable UCA Ball Joint (PRESSED IN) – K6696
2019-Present
- Upper Ball Joint – K6292
- Lower Ball Joint – K6541 + IHC Suspension Machined sleeve (SKU: IHC-1921GM-CON)
2015-2020
Upper Ball Joint – K6292
Lower Ball Joint – K6541
ADJ UCA – K6696
2021-Present
Upper Ball Joint – K6292
Lower Ball Joint – K6541 + IHC Suspension Machined sleeve (SKU: IHC-2021F-CON)
ADJ UCA – K6696
2009-2018
Upper Ball Joint – K6292
Lower Ball Joint – K6541
- 2WD Front Sway Bar Links – K80337
4WD Front Sway Bar Links – K5252
2019-2021
Upper Ball Joint – K6292
Lower Ball Joint – K6541

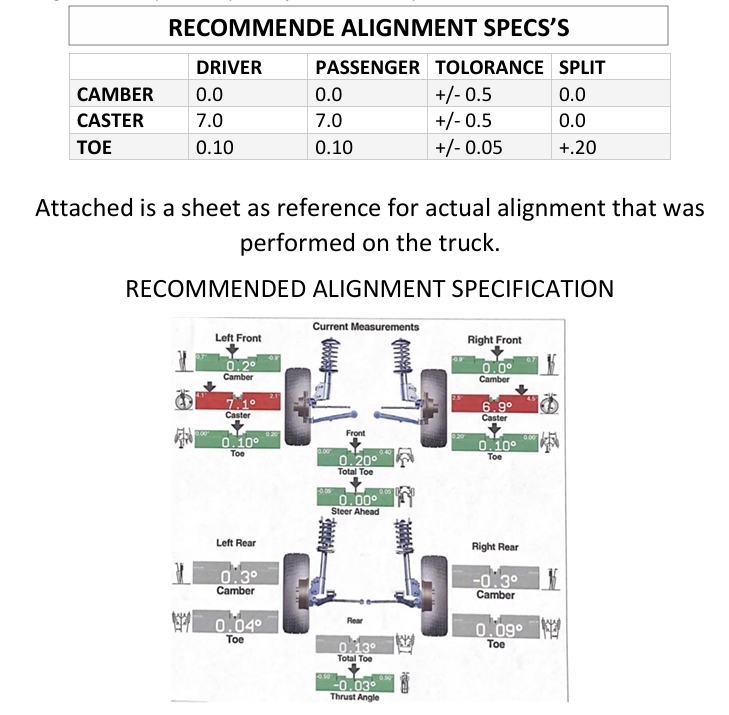

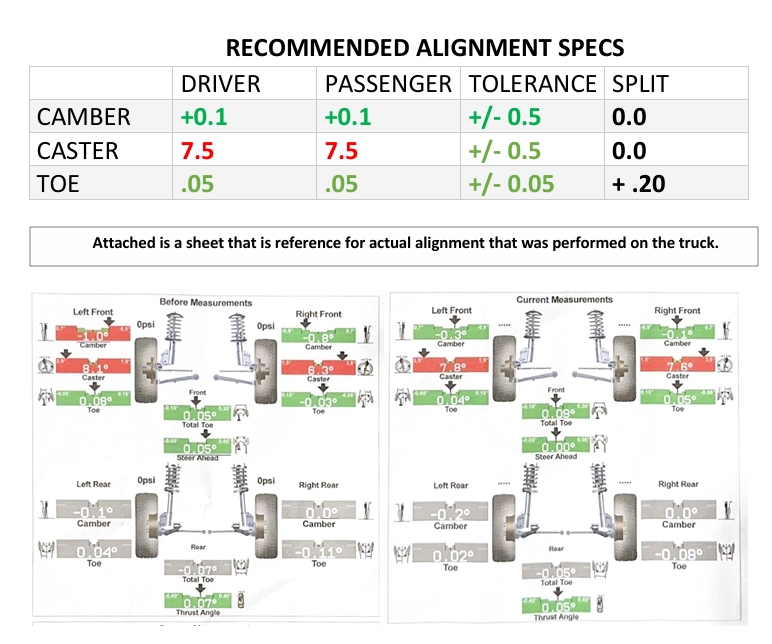

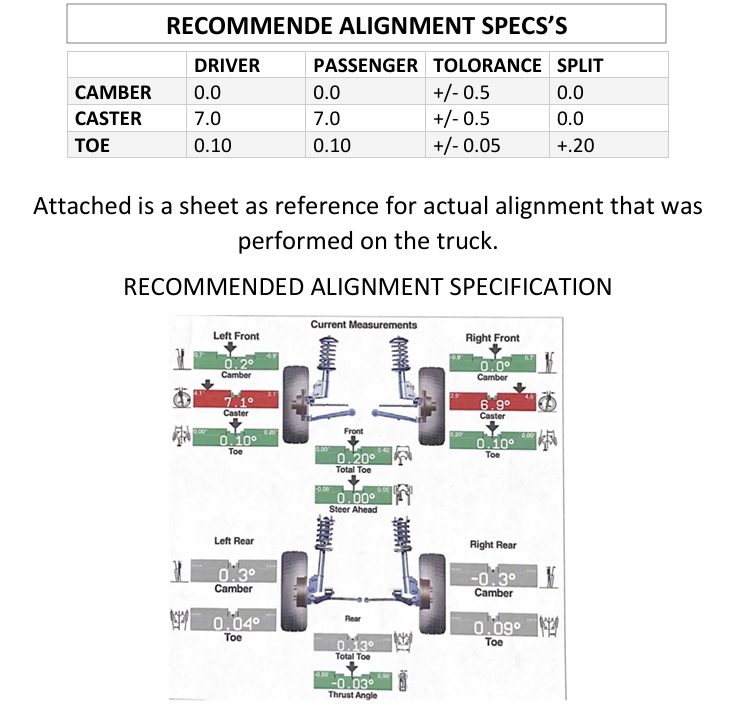

Q. Do I have to get an alignment after installation, if so what are the alignment specs?
Yes, you need to get an alignment after installing a lowering kit on your vehicle. Lowering a vehicle changes the suspension geometry which affects alignment angles like camber and toe. Without an alignment you will experience uneven tire wear, premature tire wear, or handling issues.
Repair any suspension issues before the installation. If this step is skipped then the alignment specs will not be within tolerances.
If the vehicle has been in an accident or has frame damage there is a high possibility that you will have issues aligning it.

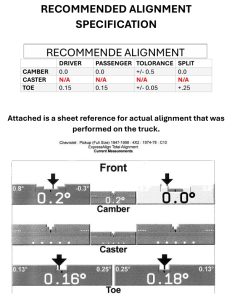

1963-1987 C10
- Front Coil Over:

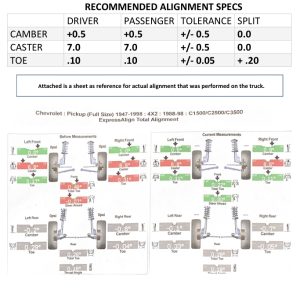

1988-1998 C1500
- 3/5 – 4/6 – 5/7:

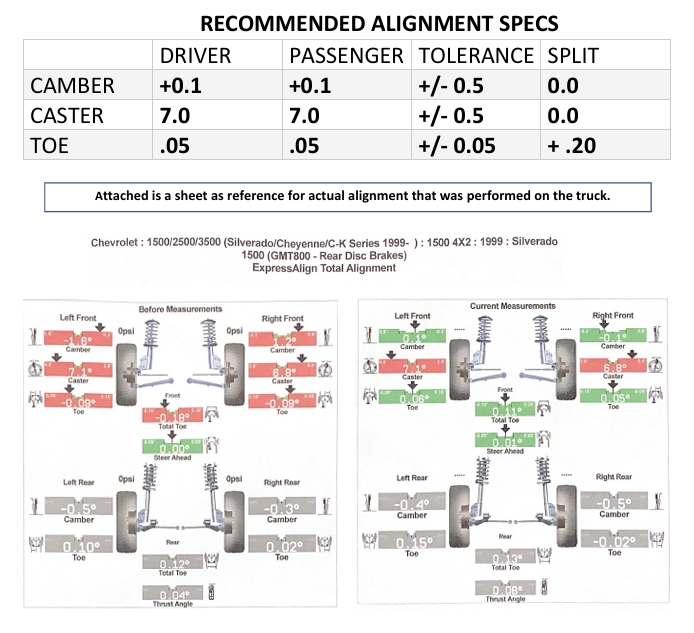

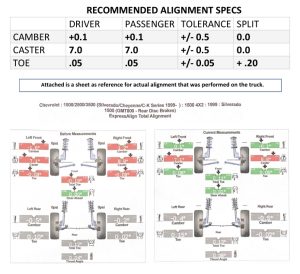

1999-2006 GM1500
- 2WD: 4/6 – 5/7

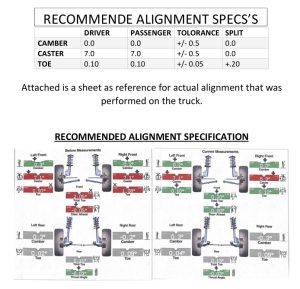

2007-2018 GM1500
- 2WD/4WD: 3/5 – 4/6 – 5/7

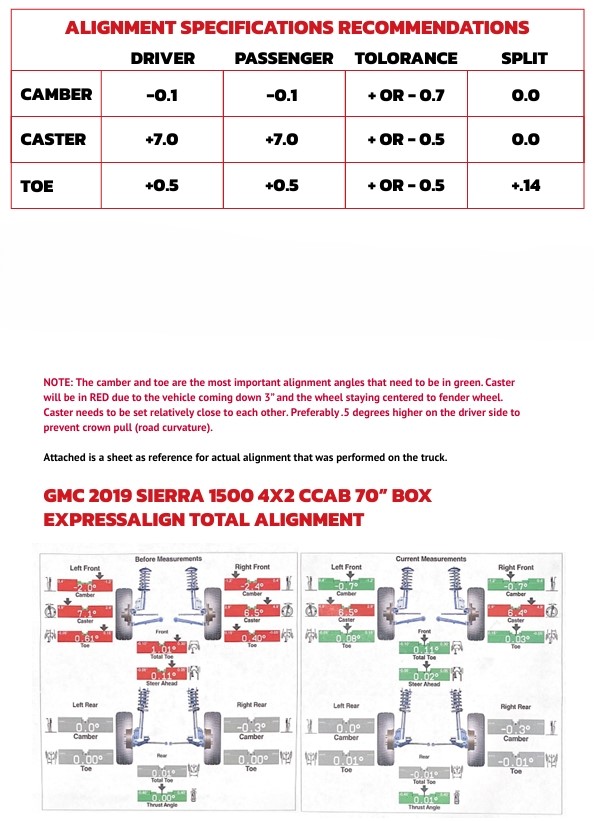

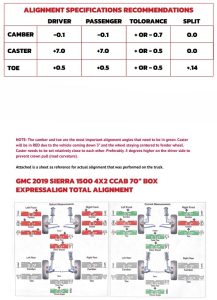

2019-Present GM1500
2WD/4WD: 3/5
2WD: 4/6

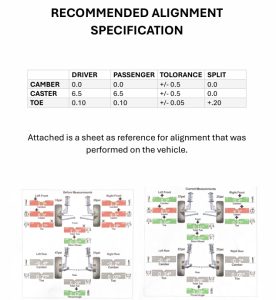

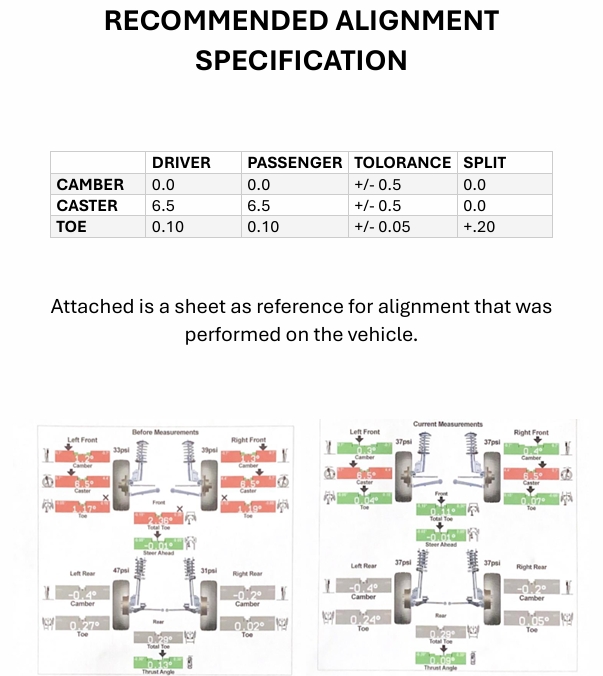

2015-2020 F150
3/5 & 4/6: Ride Quality Kit
3/5: Performance Kit
2021-Present F150
- 3/5 & 4/6: Ride Quality Kit
3/5 : Performance Kit

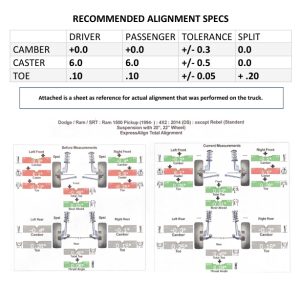

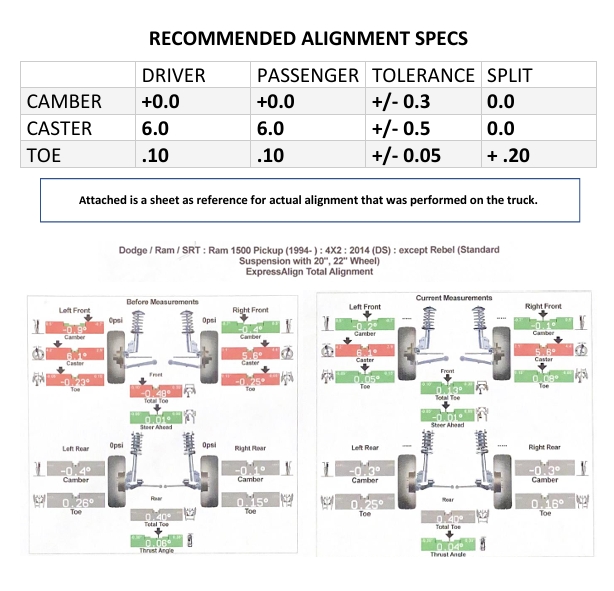

2009-2018 RAM 1500
2WD: 3/5 – 4/6 – 5/7
4WD: 3/5
2019-2021 RAM 1500
2WD: 3/5
4WD: 3/5
Q. My vehicle is torn apart and the kit I ordered isn’t here yet. Can IHC Suspension reimburse me for lost time and labor?
We strongly advise against scheduling any installation until you have received tracking information for your order. While IHC Suspension works diligently to process and ship orders as quickly as possible, delays or issues caused by shipping carriers are unfortunately out of our control.
IHC Suspension is not responsible for any shop or labor costs incurred due to missed deliveries, delays, or damaged parts upon arrival. We will, of course, replace any damaged items but we cannot reimburse time or labor costs for circumstances beyond our control.
Q. Only half of my order showed up, what is going on?
In some cases, shipping carriers may split up a shipment after they leave our warehouse which can result in packages arriving at different times. Please check your email and order status for multiple tracking numbers.
If you only received one tracking number and are still missing items from your order, feel free to contact us right away so we can investigate it for you.
Q. Do you ship internationally?
Yes, international shipping costs are calculated automatically at checkout.
If you have any concerns about the international shipping charges, please call our sales team before placing your order.
Q. How often should I grease my suspension?
THIS WILL APPLY TO ALL IHC CONTROL ARMS, BALL JOINTS, BUSHINGS, AND SHACKLES.
IHC Suspension recommends to grease the control arms and ball joints during initial installation. Failure to do so will cause premature wear on ball joints, bushings, and possible noises.
Once suspension has been properly greased at initial installation, recheck all hardware for proper torque values after the first 500 MILES. You will periodicaly service your suspension every 3,000-5,000 miles or 6-months, whichever comes first.
If you live in an area where there is a lot of snow and salt on the road, IHC Suspension recommends to service suspension every 3 months or 2,500 miles, whichever comes first.
Q. How often should I torque my suspension?
IHC Suspension recommends that all torque procedures be performed at initial installation as per instructions.
Make sure you perform a re-torque after 500 miles and periodically every 6 months or 3,000-5,000 miles, whichever comes first.
Q. Do larger wheels and tires affect my ride quality?
Yes, larger wheels and tires can affect your ride quality. The key factor here is your tire sidewall height. The sidewall plays a major role in absorbing the road and directly influences ride comfort.
When you increase wheel size you often lose sidewall height, which leads to a stiffer or less comfortable ride. While upgraded shocks or struts can help improve the feel, they will not fully restore the original ride quality you had with more sidewall.
Q. Will I have my stock turning radius?
IHC Suspension designs all its lowering kit based off stock wheels and tires to maintain stock turning radius. IHC Suspension keeps all stock turning radius in place as best as possible.
Aftermarket wheels and tires with different offsets may affect turning radius. IHC Suspension recommends inquiring with a professional suspension/tire shop to discuss your options.
Q. How much can I tow after lowering with NO helper bags?
IHC Suspension does not recommend towing/hauling after lowering a pickup truck.
WHY? After lowering a pickup truck, you have between 3 to 5 inches of clearance from the frame to axle.
IF you add weight, it will reduce the suspension travel from frame to axle and cause bottoming out. IHC Suspension recommends installing a helper bag kit.
Q. How much can I tow after lowering with helper bags
IHC Suspension recommends not to exceed 7,000 lbs. Keep in mind that tongue weight is much less once towing.
Q. How much PSI can I add to my helper bags?
IHC Suspension uses Firestone 9000 air bags and are rated up to 115 PSI.
Keep in mind that depending on load the PSI will vary but never to exceed 115 PSI.
Q. What are my bags rated for?
Air bags are rated for 1,500 lbs each giving you 3,000 lbs payload together.
Q. Where can I find my torque specs for installation?
IHC Suspension torque specs can be found in the TECH tab under INSTALLATION INSTRUCTIONS.
You can also reach out to our Tech Support for these specs via email at TECH@ihcsuspension.com
