1988-1998 C1500 4/6 Lowering Kit

$1,100.00

-

IHC Suspension is excited to introduce the most complete C1500 lowering kits in the market. IHC kit has all the features that most of our competitors just do not have. Here are our key features that differentiate us from the competition.

  • Kill 2 birds with 1 stone. Not only are you lowering the truck but also replacing your 25+ year old ball joints and bushing with IHC control arms.
  • IHC control arm have track width reduced ¾” to allow more tire to fender clearance for turning. Giving the customer more wheel and tire options. Most spindles pop out factory track width ½ to ¾”.
  • IHC control arms run Delrin bushing for maximum performance, extended bushing life, and minimal maintenance.
  • IHC Flip kit has correct pinion angle built in so no need to use pinion shims.
  • Bolt in C notch for your DIY. ¼” metal plate used. Grade 8 hardware!
  • All MADE IN USA! Manufactured in TEXAS!
  • Lifetime warranty on all metal parts!

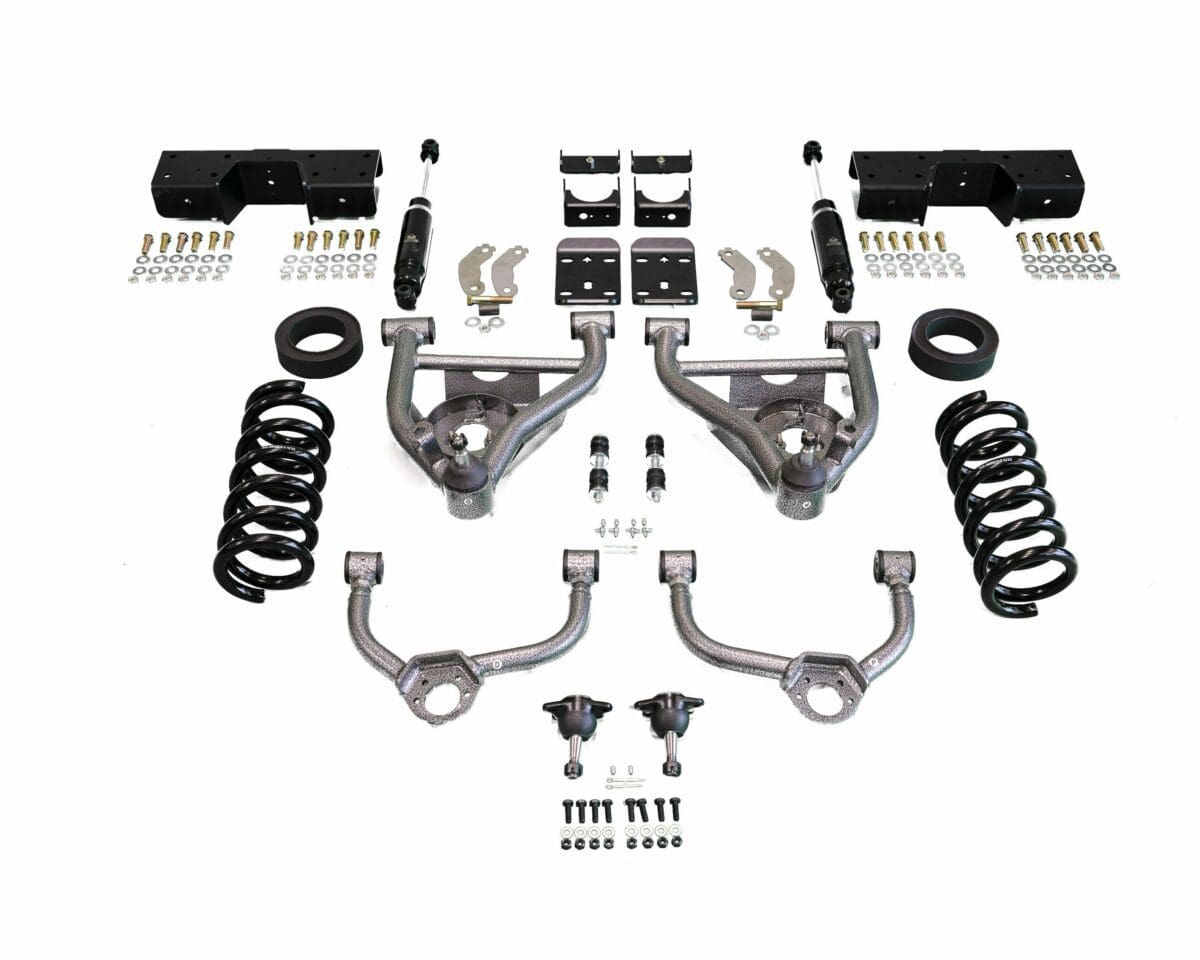

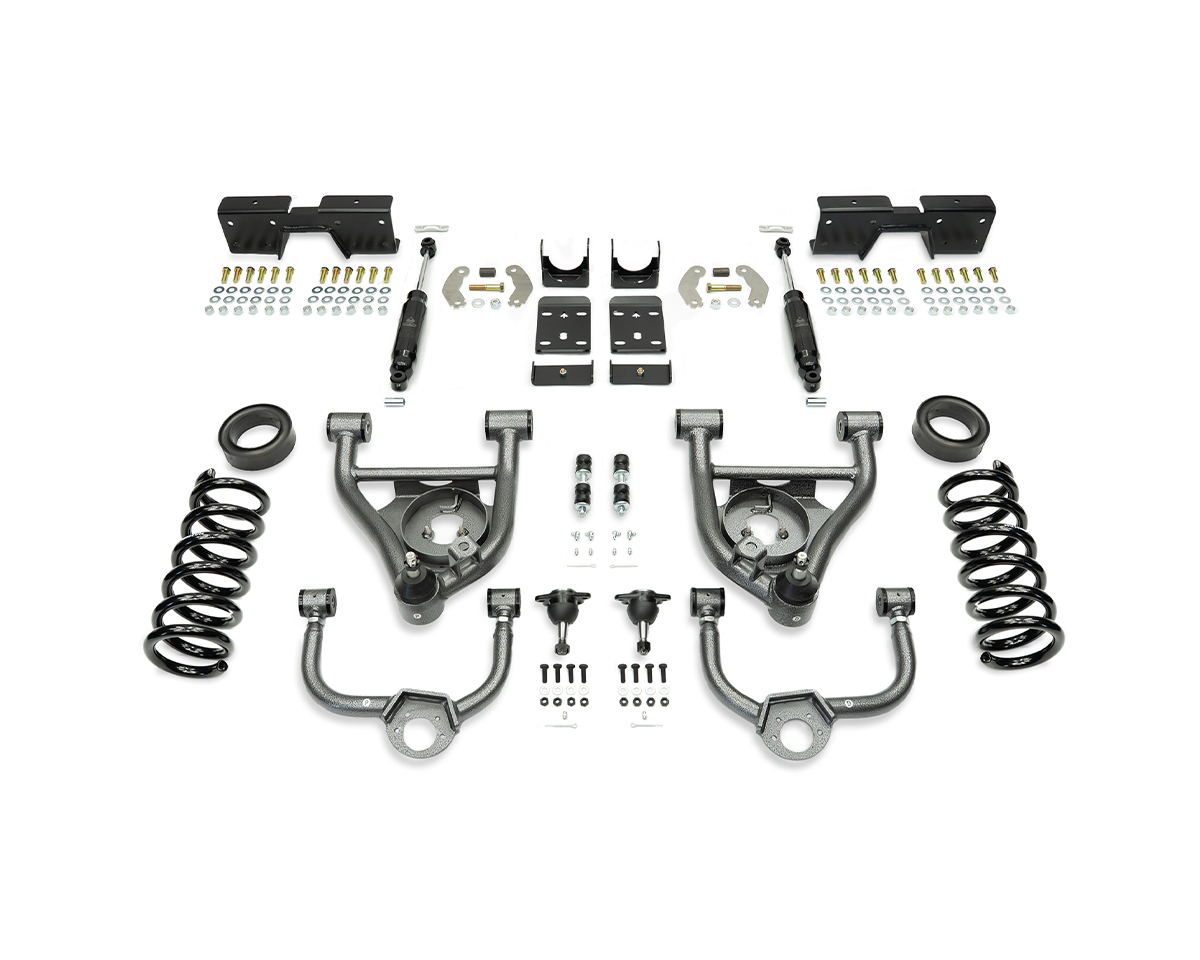

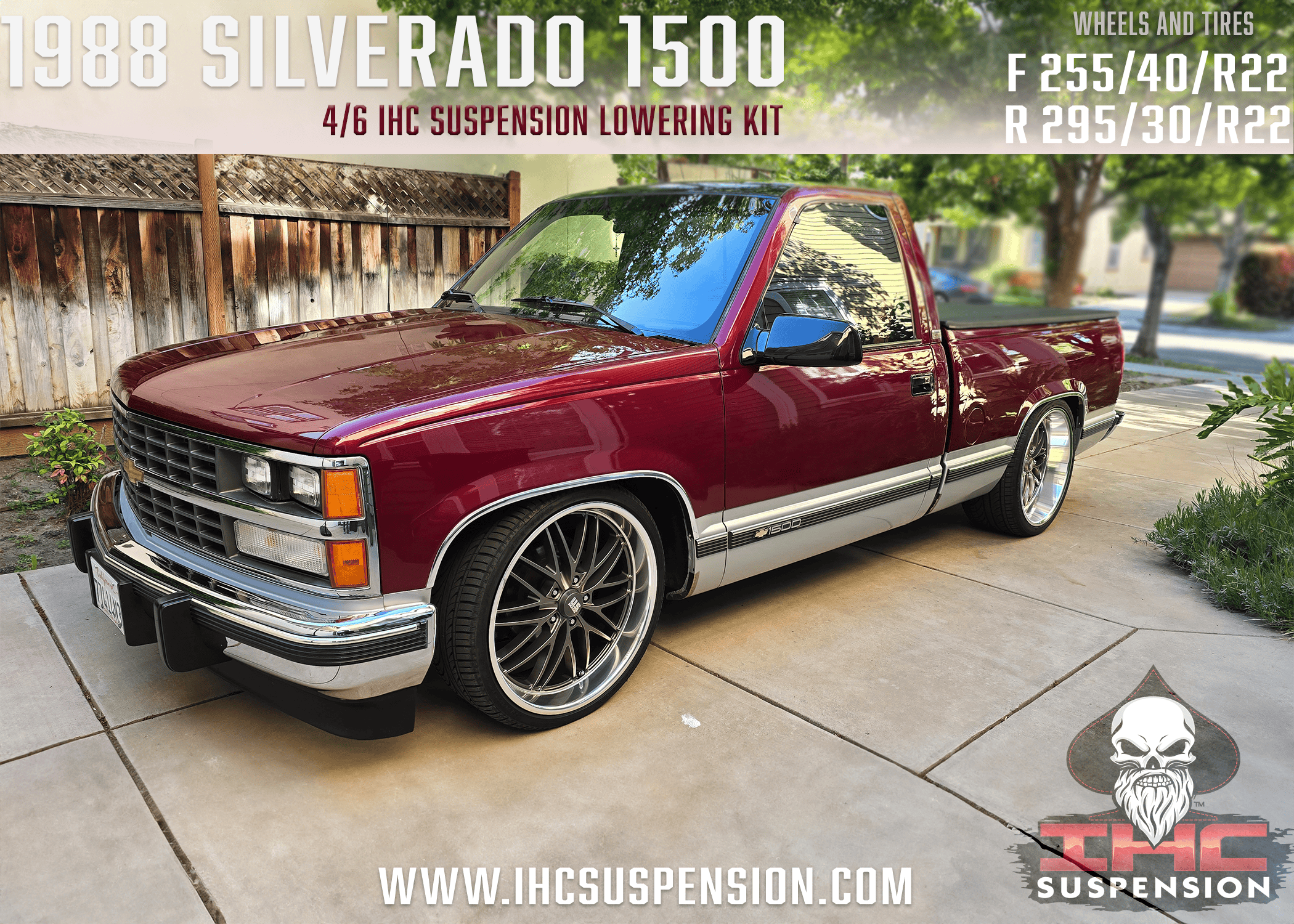

IHC 4/6 C1500 lowering kit consist of 3” lowering control arms (upper and lower), and a 1″ drop spring. The rear consists of Flip kit, drop shocks, shock extenders, and bolt on under bed C notch. All IHC suspension parts are Fiber laser cut, CNC bend, robotic welded for precise quality.

SKU: IHC-GM8898CK-46 Categories: , , ,
Instructions

Instructions

  • Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. IHC Suspension  is NOT responsible for any damage or failure resulting from improper installation



  • Estimated Installation Time: 9 Hours +/- 1 hour (excluding alignment)



FRONT INSTRUCTIONS (CLICK HERE)

REAR INSTRUCTIONS (CLICK HERE)

FITMENT

FITMENT

FITS 2WD coil spring vehicle only

DOES NOT FIT 4WD, LONG BED MODELS, OR 454 SS MODELS.

Kit Components

Kit Components

FRONT

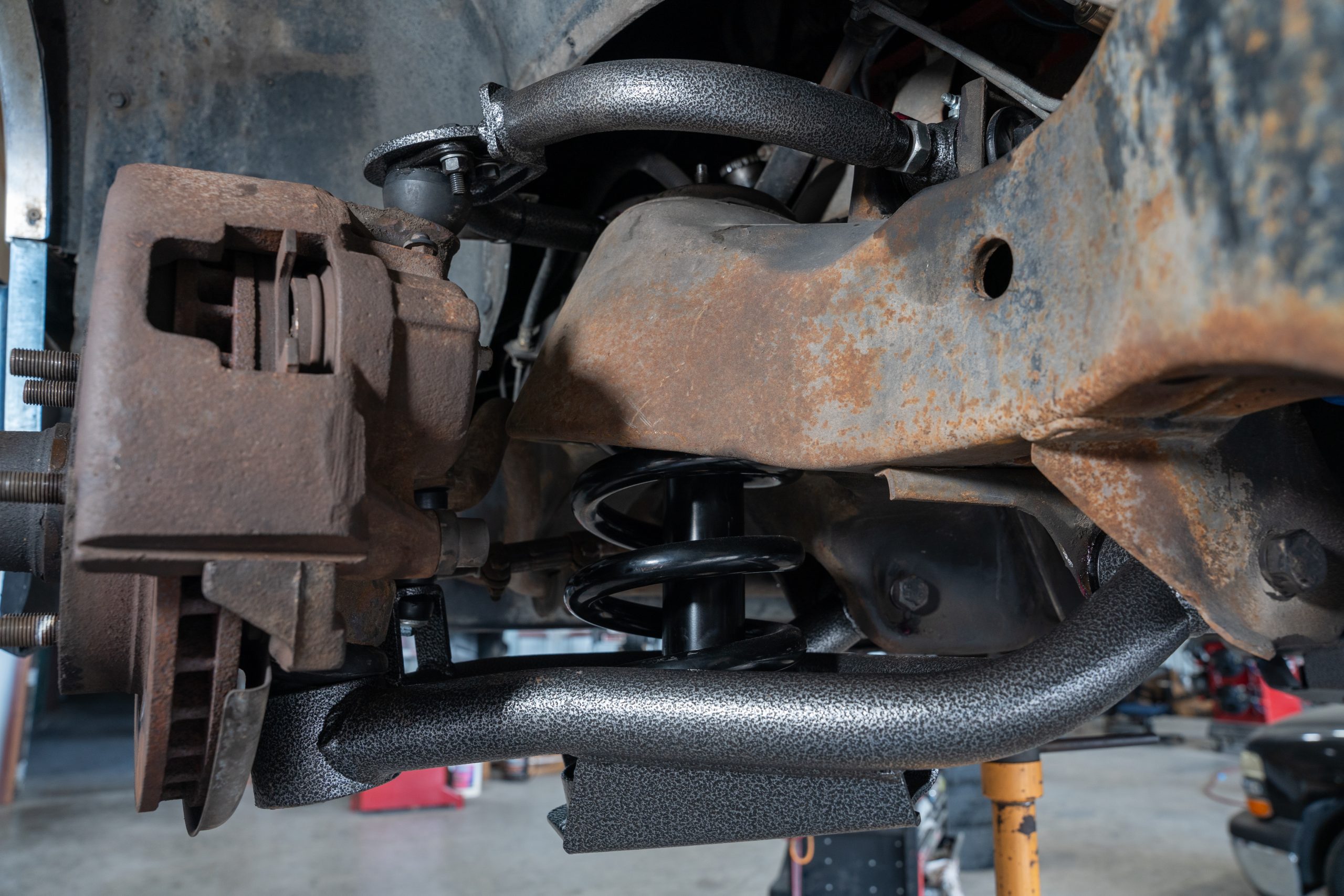

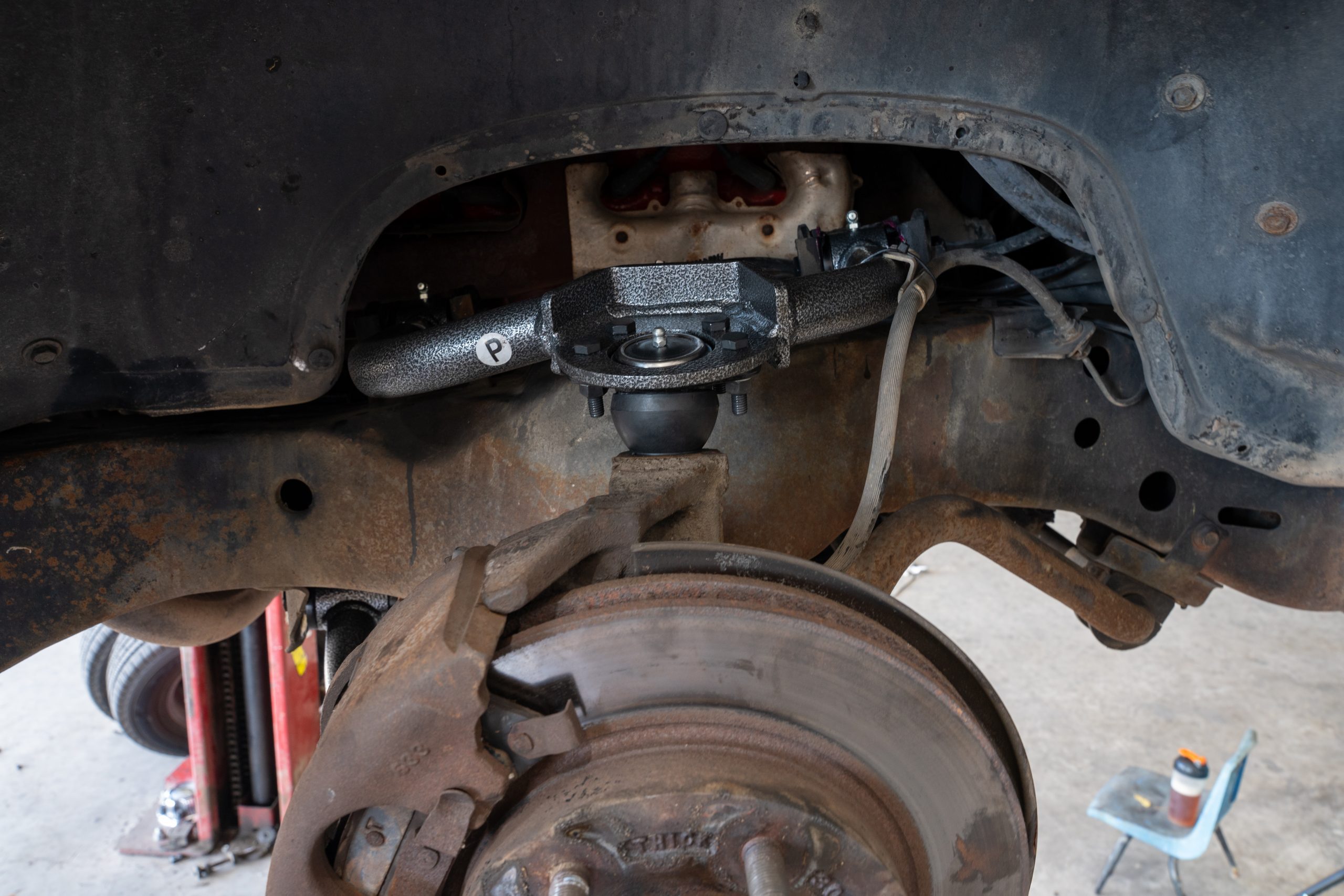

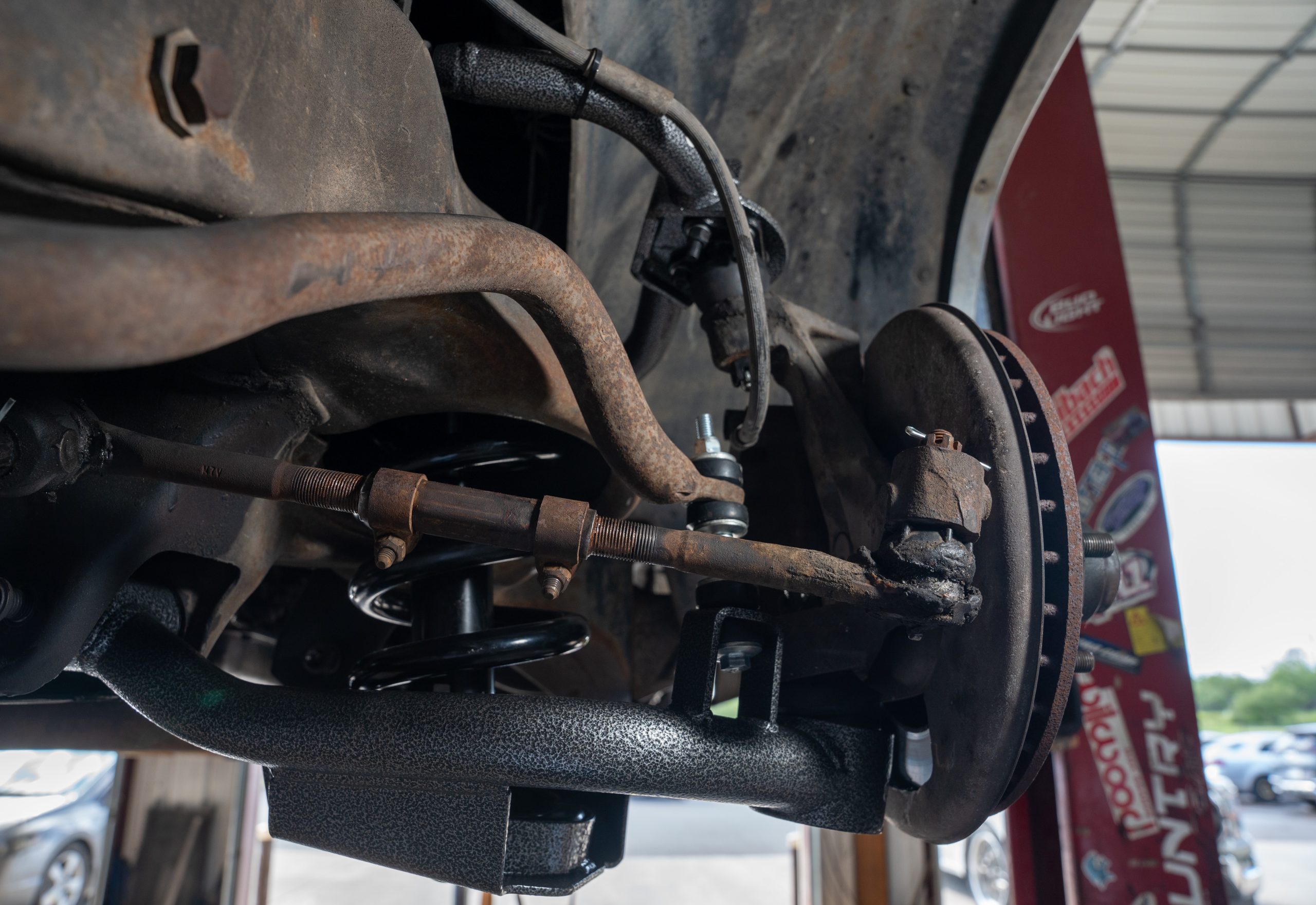

  • 3” Lowering control arms (upper and lower)

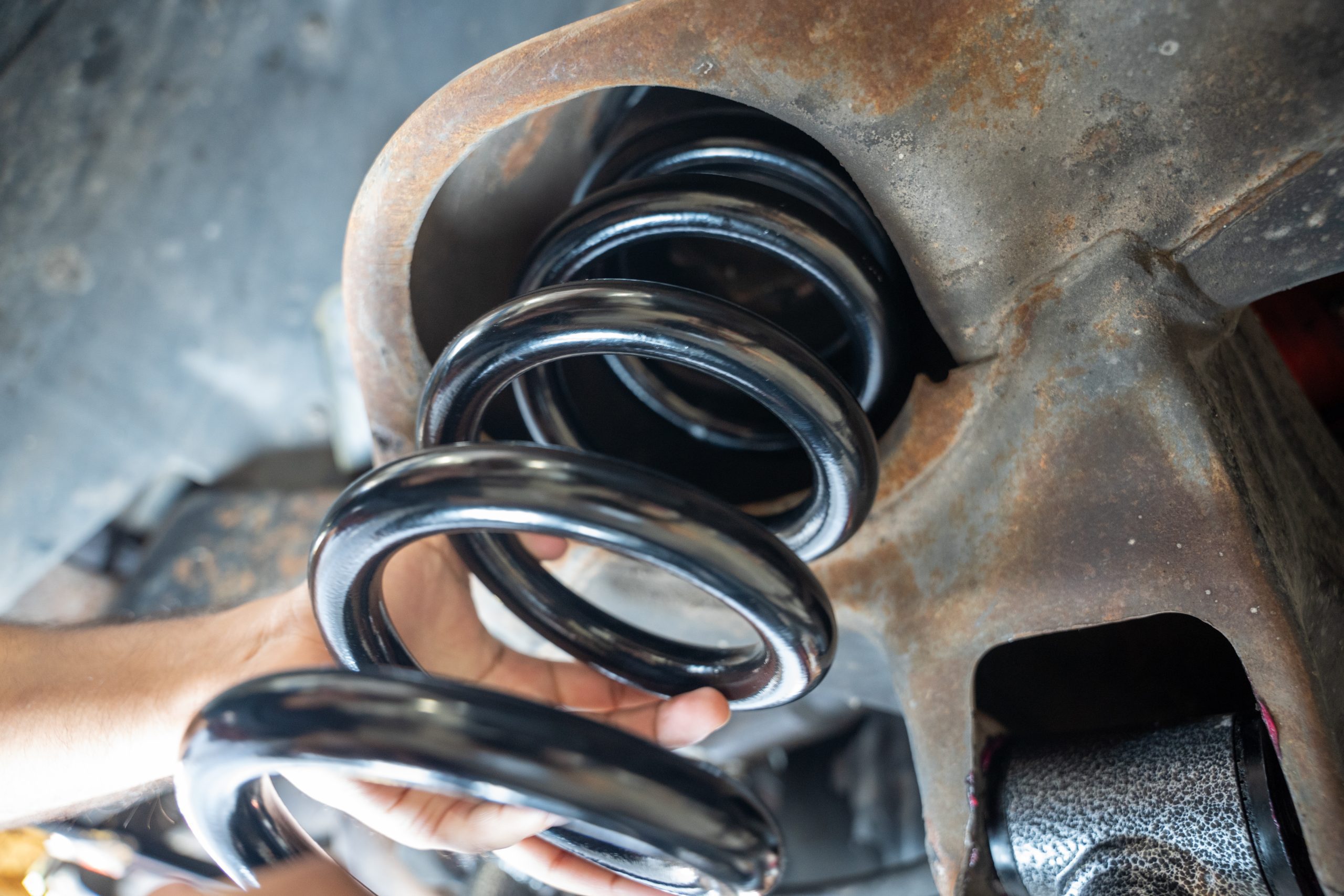

  • 1″ lowering springs
  • Shorter sway bar link

REAR

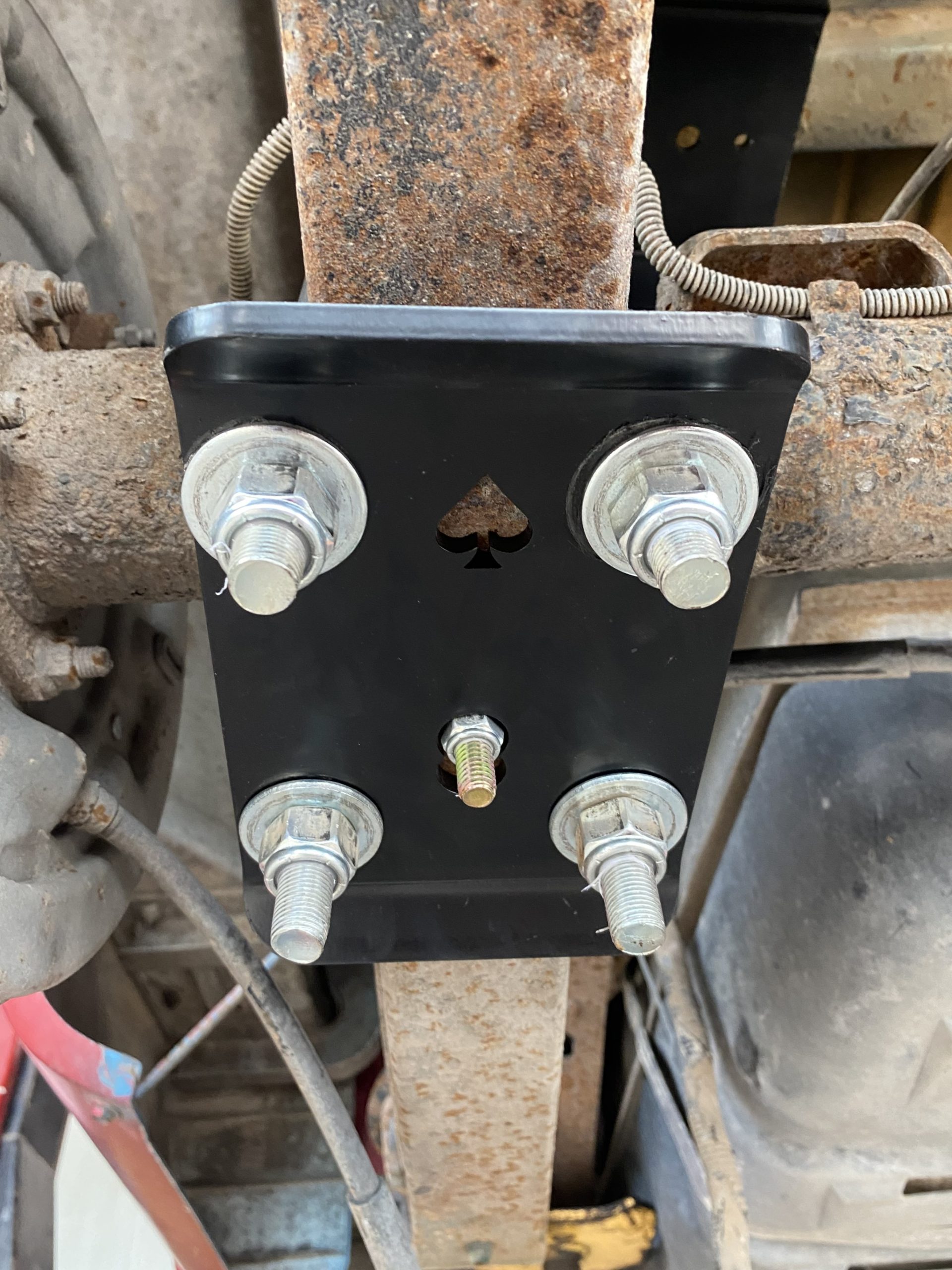

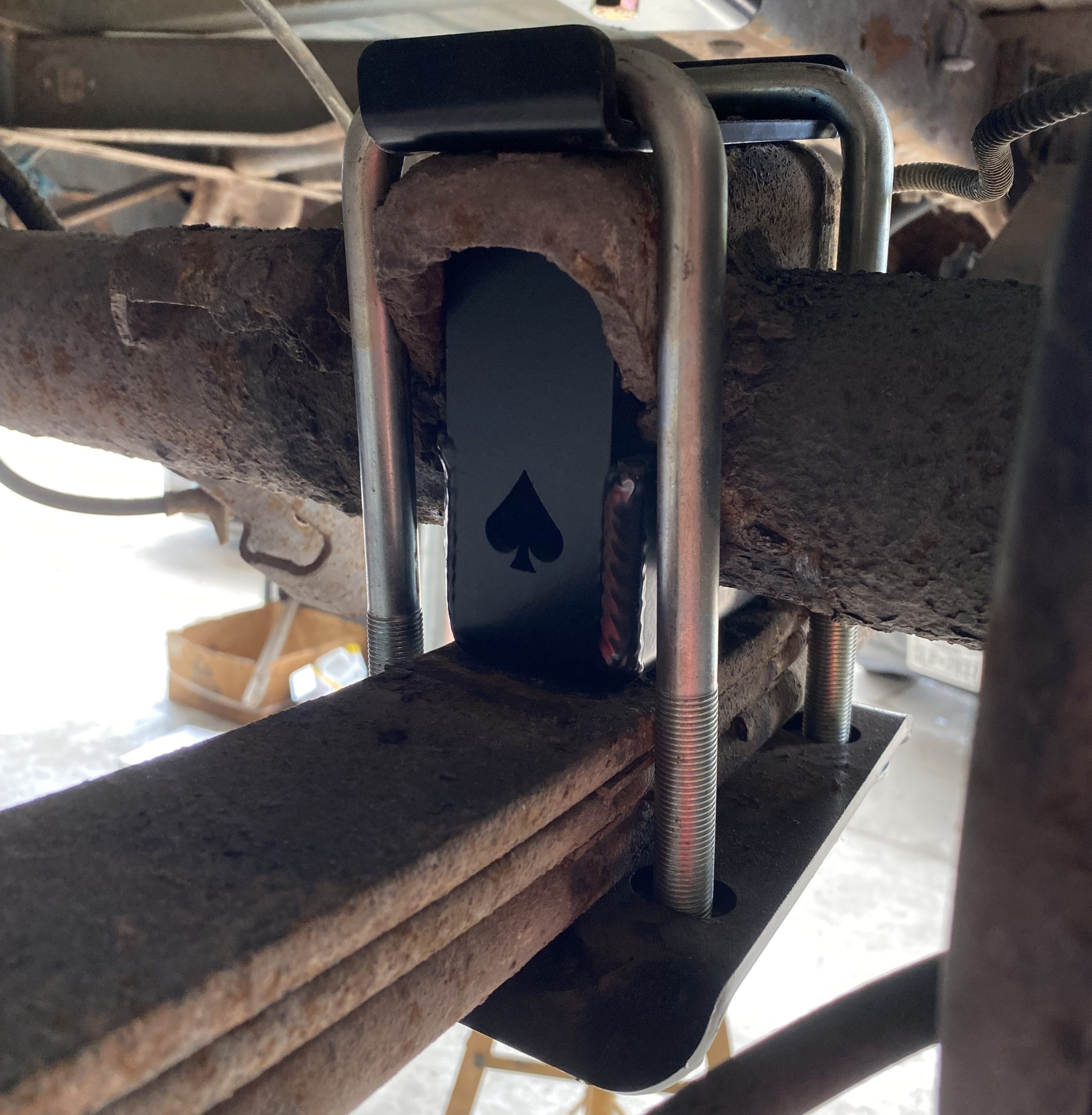

  • Flip kit

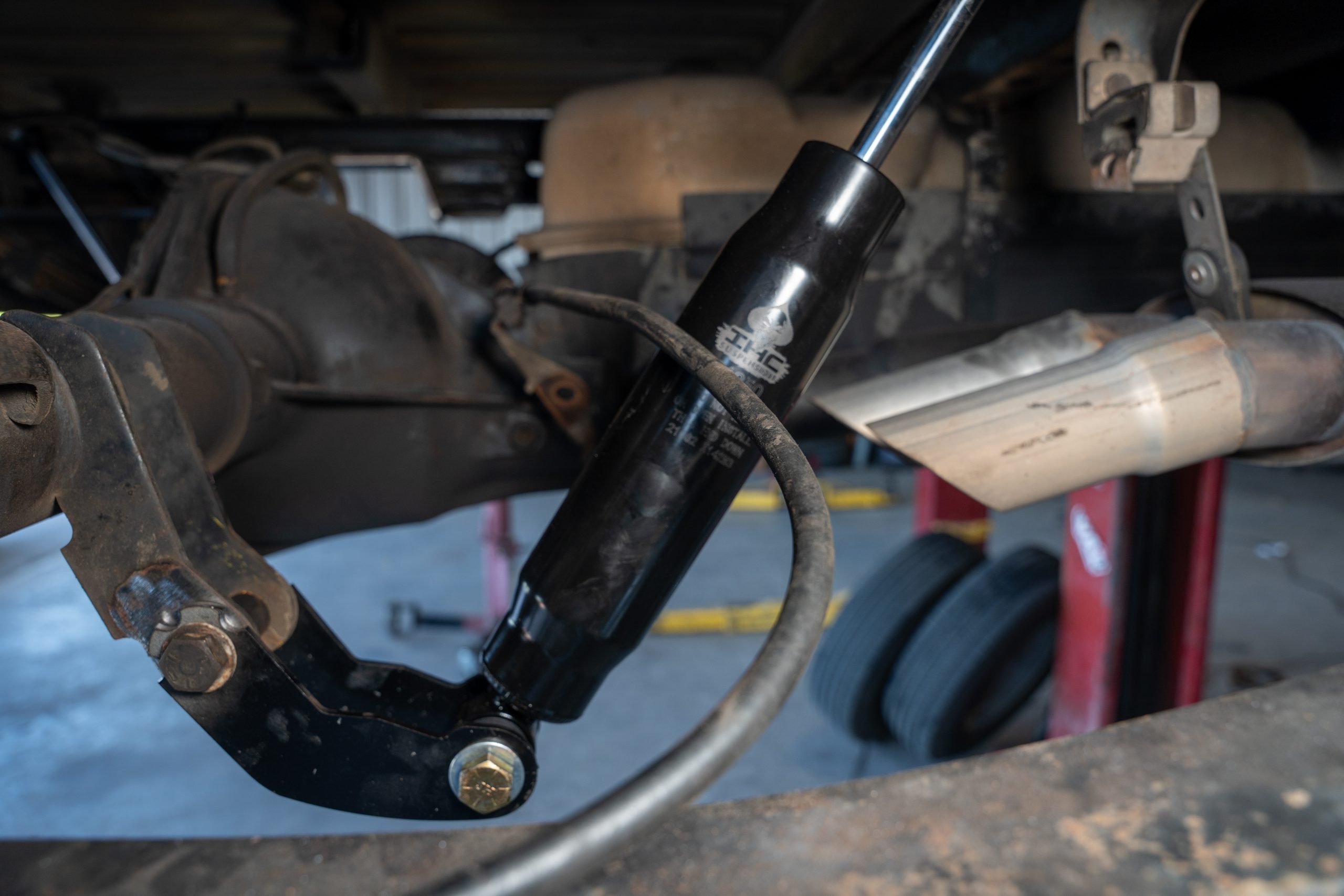

  • Drop shocks
  • Shock extenders

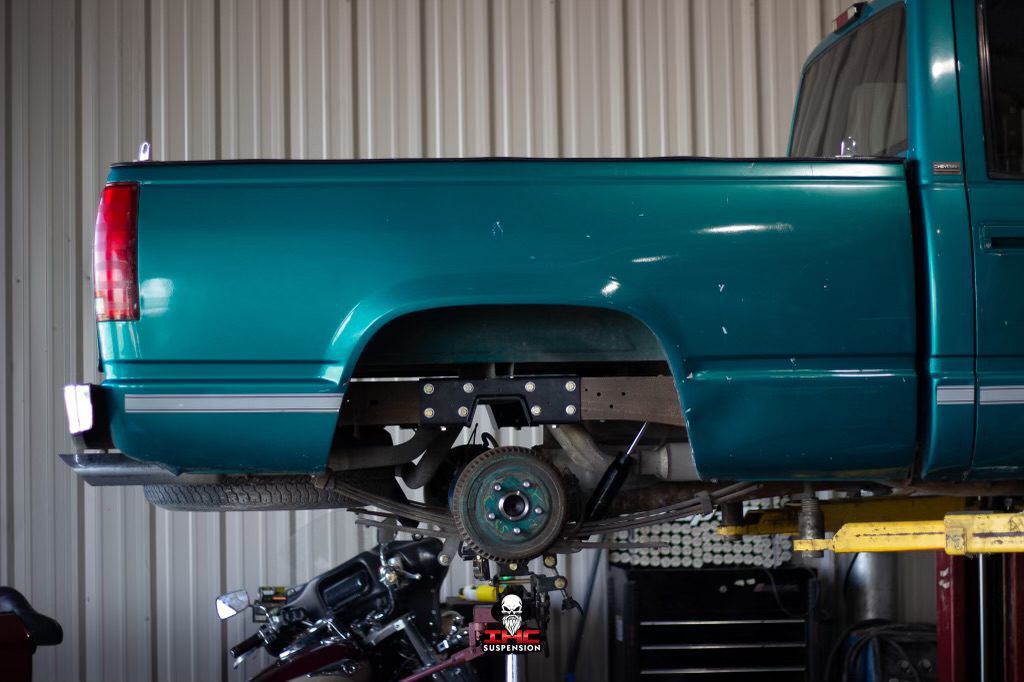

  • Bolt on Under bed C notch
PACKAGE WEIGHTS & DIMENSIONS

PACKAGE WEIGHTS & DIMENSIONS

IHC-GM8898CA-3

  • WEIGHT: 59 LBS.
  • DIMENSIONS: 20″X20″X10″

IHC-GM8898RK-6

  • WEIGHT: 49 LBS.
  • DIMENSIONS: 20″X12″X6″

IHC-GM8898CS-2 & IHC-GM8898ISO-1″

  • WEIGHT: 36 LBS.
  • DIMENSIONS: 20″X12″X6″
