2007-2016 GM1500 (CAST) 5/7 LOWERING KIT EXTENDED/CREW CAB W/ BOLT ON C-NOTCH

$1,089.00

-

IHC Suspension is excited to announce our best-selling 2007-2013 GM 1500 Extended/Crew cab 5/7 lowering kit. IHC Suspension coming from the service/installation side understood the challenges that other kits were not solving.

Our key features that differentiate us from the competition and save you money:

  • Kill 2 birds with 1 stone. Not only are you lowering the truck but also replacing your 10+-year-old ball joints and bushing with IHC control arms.
  • IHC’s control arm aligns to factory specs.
  • Standard upper control arms for camber correction. (No additional parts needed like camber/caster bushing or offset ball joints to align)
  • IHC’s flip kit has the correct pinion angle built in so no need to use pinion shims.
  • Bolt on C-notch for your DIY. 1/4″ metal plate used. Grade 8 hardware!
  • MADE IN THE USA!
  • Manufactured in TEXAS!
  • Lifetime warranty on all metal parts!

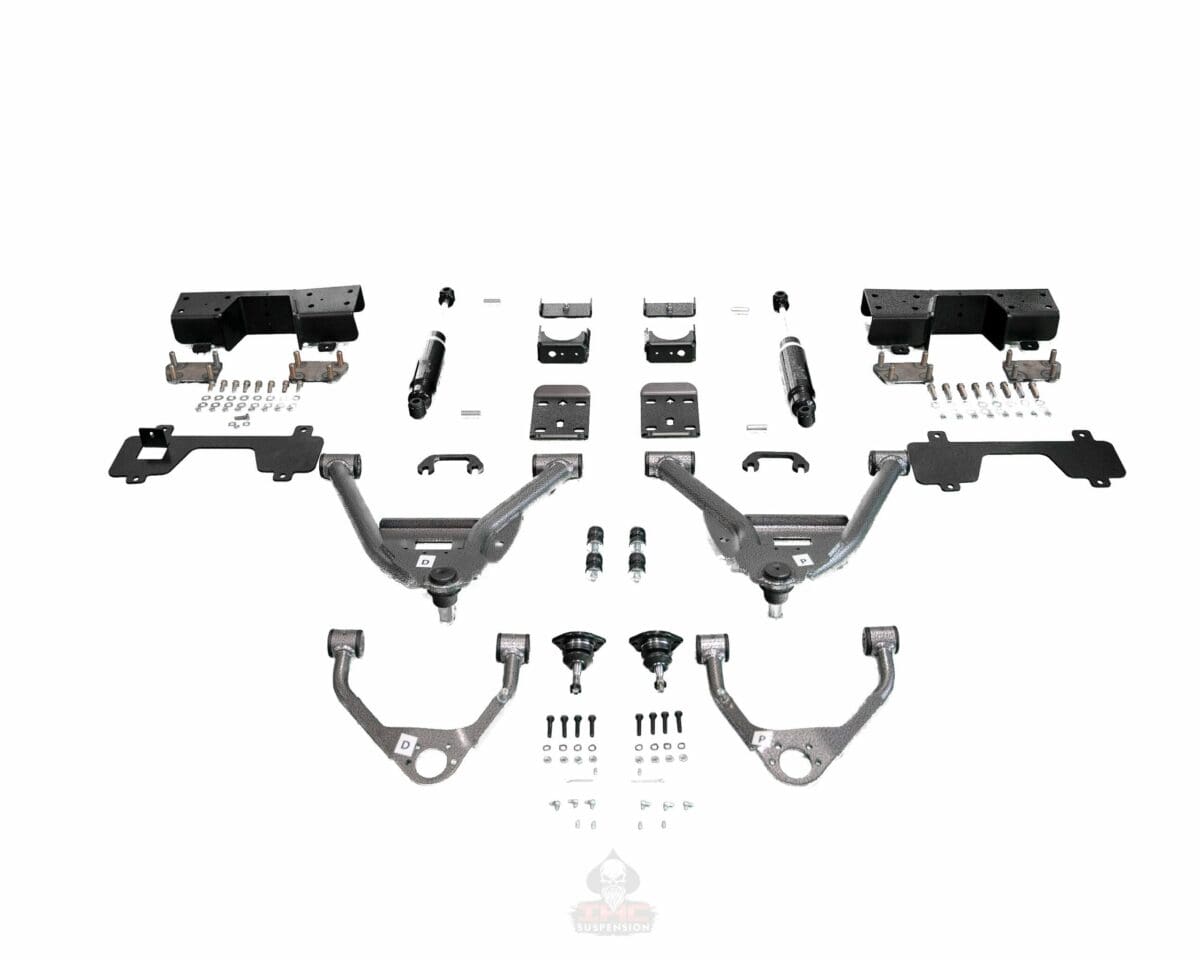

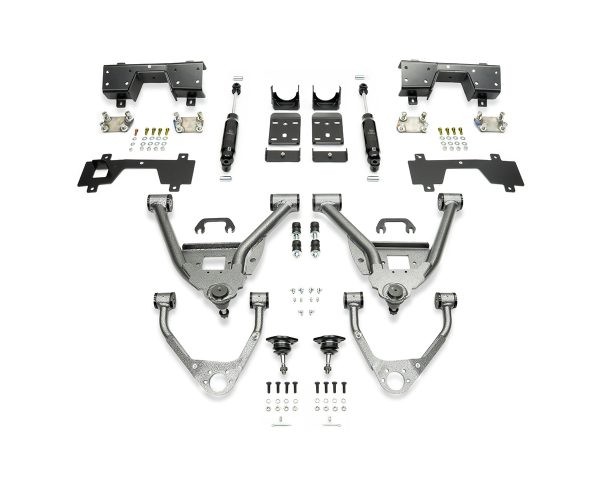

IHC Suspension’s 2007-2016 GM1500 Extended/Crew Cab 5/7 lowering kit consists of upper and lower control arms. You achieve the drop with the lower control arm and the upper is for alignment correction. Spacers are included to adjust front control arms from 5” to 4” without purchasing any more parts. Shorter sway bar links are included for better sway bar angle. The rear consists of a flip kit with the correct pinion angle built-in, so NO pinion shims are needed. Nitrogen drop shocks and  2” lowering shackles (need to be set on 2nd hole) are included. C-notch is required. IHC includes bolt on under-bed C-notch that requires no welding for your DIY.

SKU: IHC-GM0713CK-57CC Categories: , , , , , , ,
Additional Information
Weight 119 lbs
KIT COMPONENTS

KIT COMPONENTS

FRONT

  • Lowering control arms (Upper & Lower)
  • Shorter sway bar links
  • Spacers

REAR

  • Flip kit
  • Nitrogen charged drop shocks
  • Bolt on C-notch
PACKAGE WEIGHTS & DIMENSIONS

PACKAGE WEIGHTS & DIMENSIONS

(BOLT ON C-NOTCH OPTION)

IHC-GM0713CA-45

  • WEIGHT: 54 LBS.
  • DIMENSIONS: 20″X20″X10″

IHC-GM0718RK-7CC

  • WEIGHT: 20 LBS.
  • DIMENSIONS: 20″X6″X6″

IHC-GM0718-BCN

  • WEIGHT: 40 LBS.
  • DIMENSIONS: 12″X6″X8″



(WELD ON C-NOTCH OPTION)

IHC-GM0713CA-45

  • WEIGHT: 54 LBS.
  • DIMENSIONS: 20″X20″X10″

IHC-GM0718RK-7CC + IHC-GM0718-WCN

  • WEIGHT: 33 LBS.
  • DIMENSIONS: 20″X12″X6″
