2007-2016 GM1500 (CAST) 5/7 LOWERING KIT SINGLE CAB W/ BOLT ON C-NOTCH

$1,169.00 price excluding tax

-

IHC Suspension is excited to announce our best-selling 2007-2013 GM 1500 Single cab 5/7 lowering kit. IHC Suspension coming from the service/installation side understood the challenges that other kits were not solving.

Our key features that differentiate us from the competition and save you money:

  • Kill 2 birds with 1 stone. Not only are you lowering the truck but also replacing your 10+-year-old ball joints and bushing with IHC control arms.
  • IHC’s control arm aligns to factory specs.
  • Standard upper control arms for camber correction. (No additional parts needed like camber/caster bushing or offset ball joints to align)
  • IHC’s control arms run Delrin bushings for maximum performance, extended bushing life, and minimal maintenance.
  • IHC’s flip kit has the correct pinion angle built in so no need to use pinion shims.
  • Bolt on C-notch for your DIY. 1/4″ metal plate used. Grade 8 hardware!
  • MADE IN THE USA!
  • Manufactured in TEXAS!
  • Lifetime warranty on all metal parts!

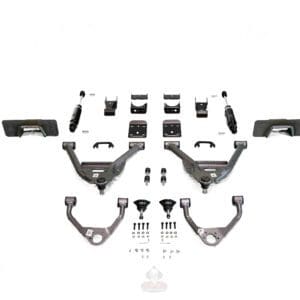

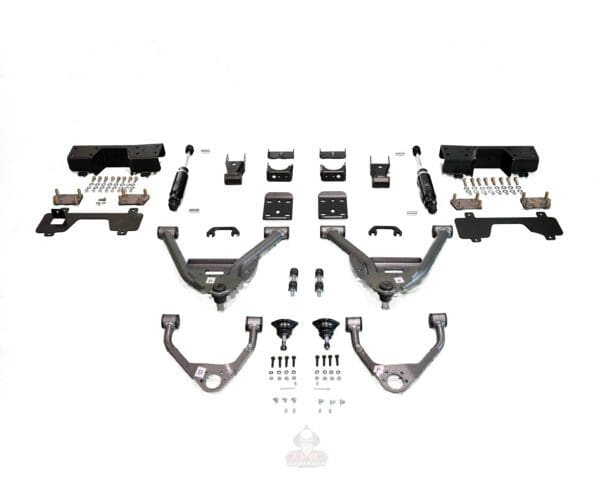

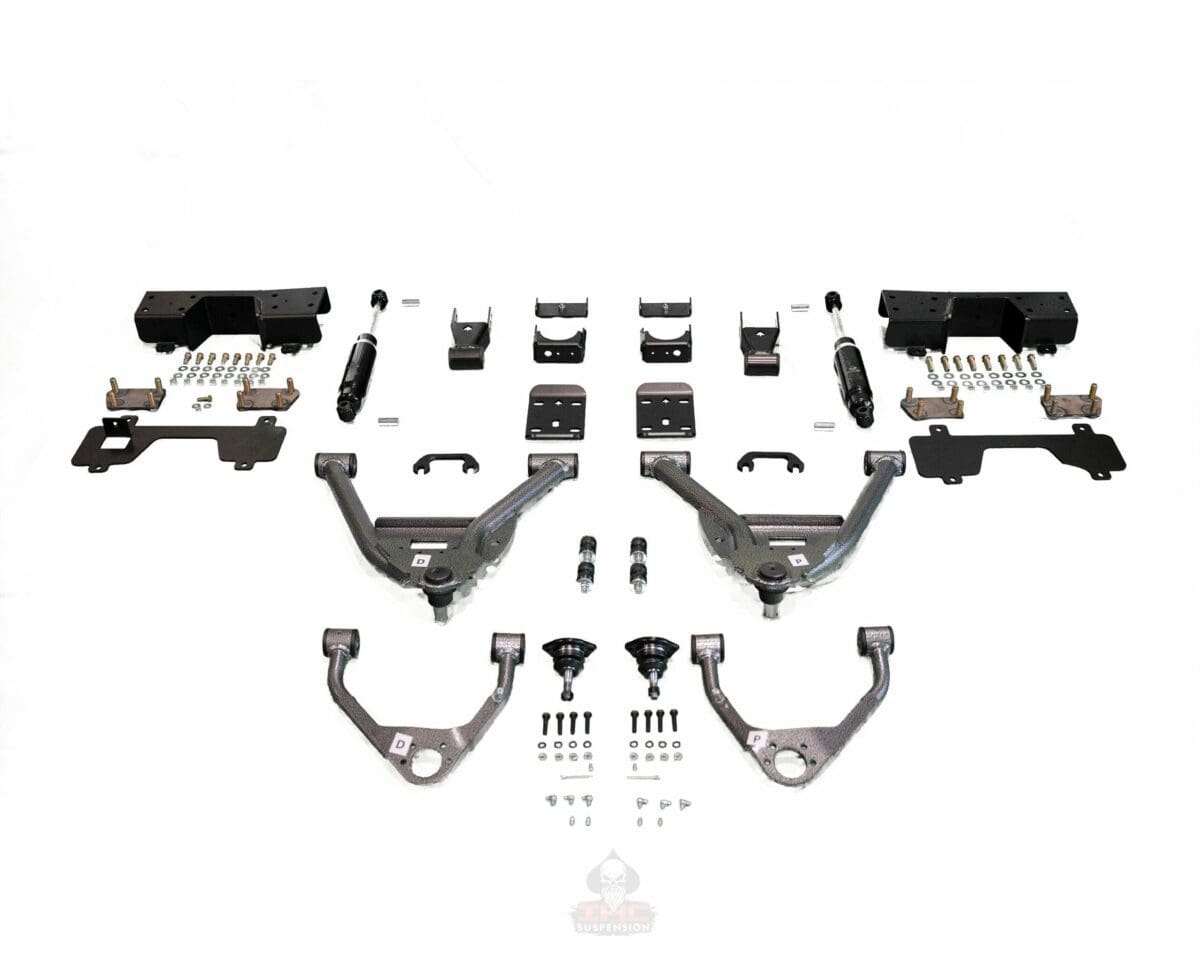

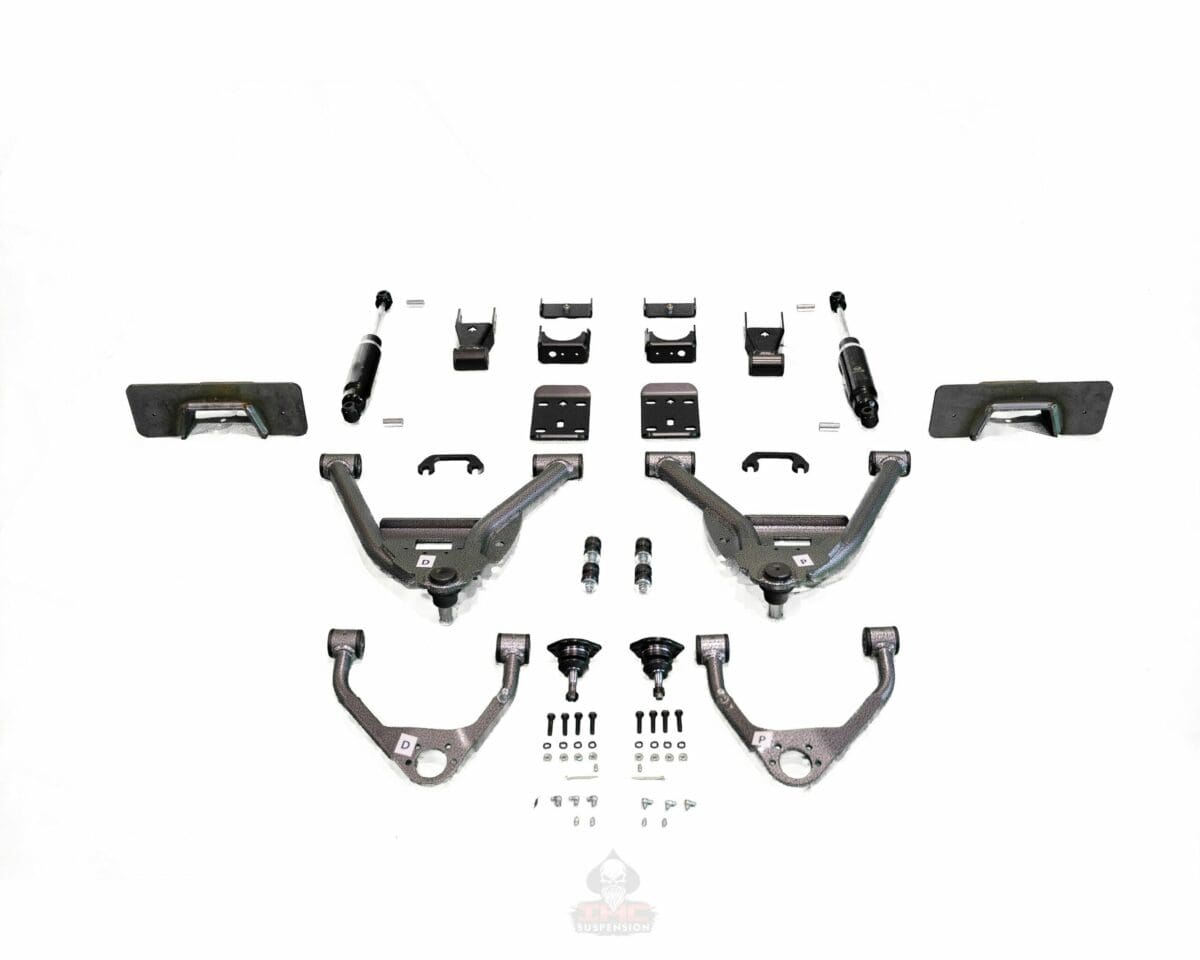

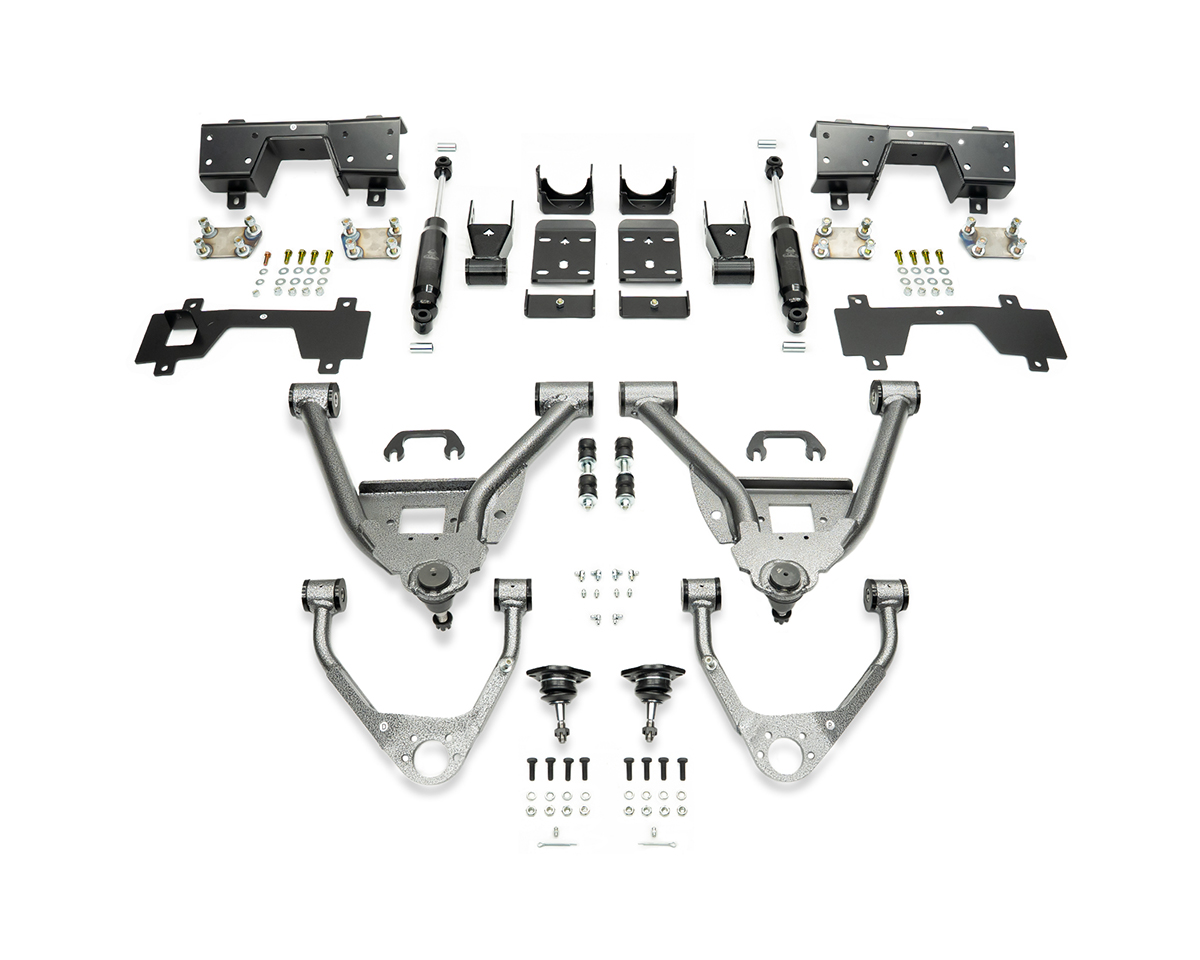

IHC Suspension’s 2007-2016 GM1500 Single Cab 5/7 lowering kit consists of upper and lower control arms. You achieve the drop with the lower control arm and the upper is for alignment correction. Spacers are included to adjust front control arms from 5” to 4” without purchasing any more parts. Shorter sway bar links are included for better sway bar angle. The rear consists of a flip kit with the correct pinion angle built-in, so NO pinion shims are needed. Nitrogen drop shocks and  2” lowering shackles (need to be set on 2nd hole) are included. C-notch is required. IHC includes bolt on under-bed C-notch that requires no welding for your DIY.

SKU: IHC-GM0713CK-57SC Categories: , , , , , , ,
FITMENT

FITMENT

  • 2007-2016 GM1500 2WD SINGLE CAB (CAST)
  • Will NOT fit Aluminum/Stamped Steel arms
KIT COMPONENTS

KIT COMPONENTS

FRONT

  • UPPER & LOWER CONTROL ARMS
  • SPACERS
  • SWAY BAR LINKS

REAR

  • FLIP KIT
  • LOWERING DROP SHACKLES
  • DROP SHOCKS
  • BOLT ON C-NOTCH
PACKAGE WEIGHTS & DIMENSIONS

PACKAGE WEIGHTS & DIMENSIONS

IHC-GM0713CA-45

  • WEIGHT: 54 LBS.
  • DIMENSIONS: 20″X20″X10″

IHC-GM0718RK-7SC

  • WEIGHT: 20 LBS.
  • DIMENSIONS: 20″X6″X6″

IHC-GM0718-BCN

  • WEIGHT: 40 LBS.
  • DIMENSIONS: 12″X6″X8″
