2021-PRESENT F-150 4WD EXTENDED/CREW CAB 3/5 LOWERING KIT (NON VDS)

$1,370.00 price excluding tax

-

IHC Suspension is excited to announce the most complete 2021-Present F150 Extended/Crew Cab 4wd 3/5 lowering kit in the market. IHC Suspension coming from the service/installation side understood the challenges that other kits were not solving.

Our key features that differentiate us from the competition and save you money:

  • FACTORY RIDE QUALITY
  • Alignment! No notching frame pockets for camber correction.
  • IHC’s control arm aligns to factory specs.
  • Standard upper control arms for camber correction included. (No additional parts needed like camber/caster bushings or offset ball joints to align)
  • IHC’s control arms run Delrin bushing for maximum performance, extended bushing life, and minimal maintenance.
  • IHC’s flip kit has the correct pinion angle built in so no need to use pinion shims.
  • MADE IN THE USA!
  • Manufactured in TEXAS!
  • Lifetime warranty on all metal parts!

IHC Suspension designed our 2021-Present F150 Extended/Crew Cab 4wd 3/5 lowering kit with ride quality being the #1 goal. We achieved that by lowering the front end with custom control arms. You achieve the 3” drop with lower control arms, keeping stock springs, shocks, and spindles where OEM ride quality comes from.  Upper control arms are standard in our kit to get your camber back in specs. Most kits require customers to notch frame pockets which are more time-consuming for installers and more money for labor to customers. Most times if notching is not done correctly lower control arms will constantly move and throw the alignment off. Not with IHC arms though.  The rear is lowered with a flip kit, front hangers and rear 1″ lift shackles rear to set at 5″ rear drop. Nitrogen charged drop shocks and new U-bolts are included.



REFER TO FITMENT FOR VDS. If your vehicle does not have these sensors. This lowering kit will fit!

SKU: IHC-F1011-CK Categories: , , , , , ,
Instructions

Instructions

  • Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. IHC Suspension is NOT responsible for any damage or failure resulting from improper installation



  • Estimated Installation Time: 7.0 Hours +/- 1 hour (excluding alignment)





DOWNLOAD PDF Front Installation Instructions (CLICK HERE)

DOWNLOAD PDF Rear Installation Instructions (CLICK HERE)



Fitment

Fitment

WILL NOT WORK WITH VEHICLES EQUIPPED WITH VEHICLE DYNAMIC SYSTEM (VDS)



RECOMMENDED WHEEL/TIRE SIZE

  • STOCKS
  • 22’s – 285/45/22
  • 24’s – 295/35/24
  • Larger wheels recommend checking with local suspension shop



Has not been tested on long beds

Components

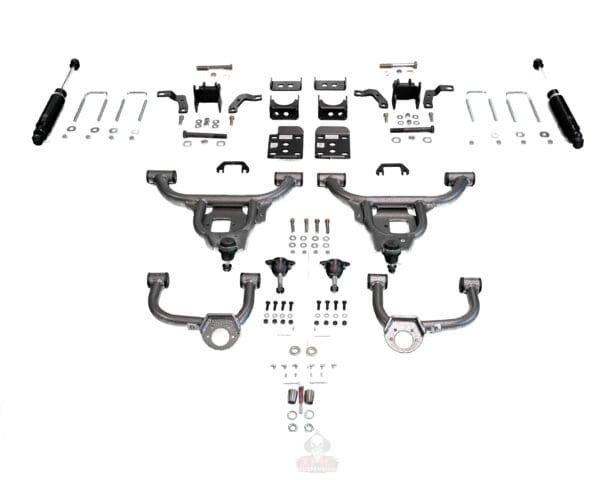

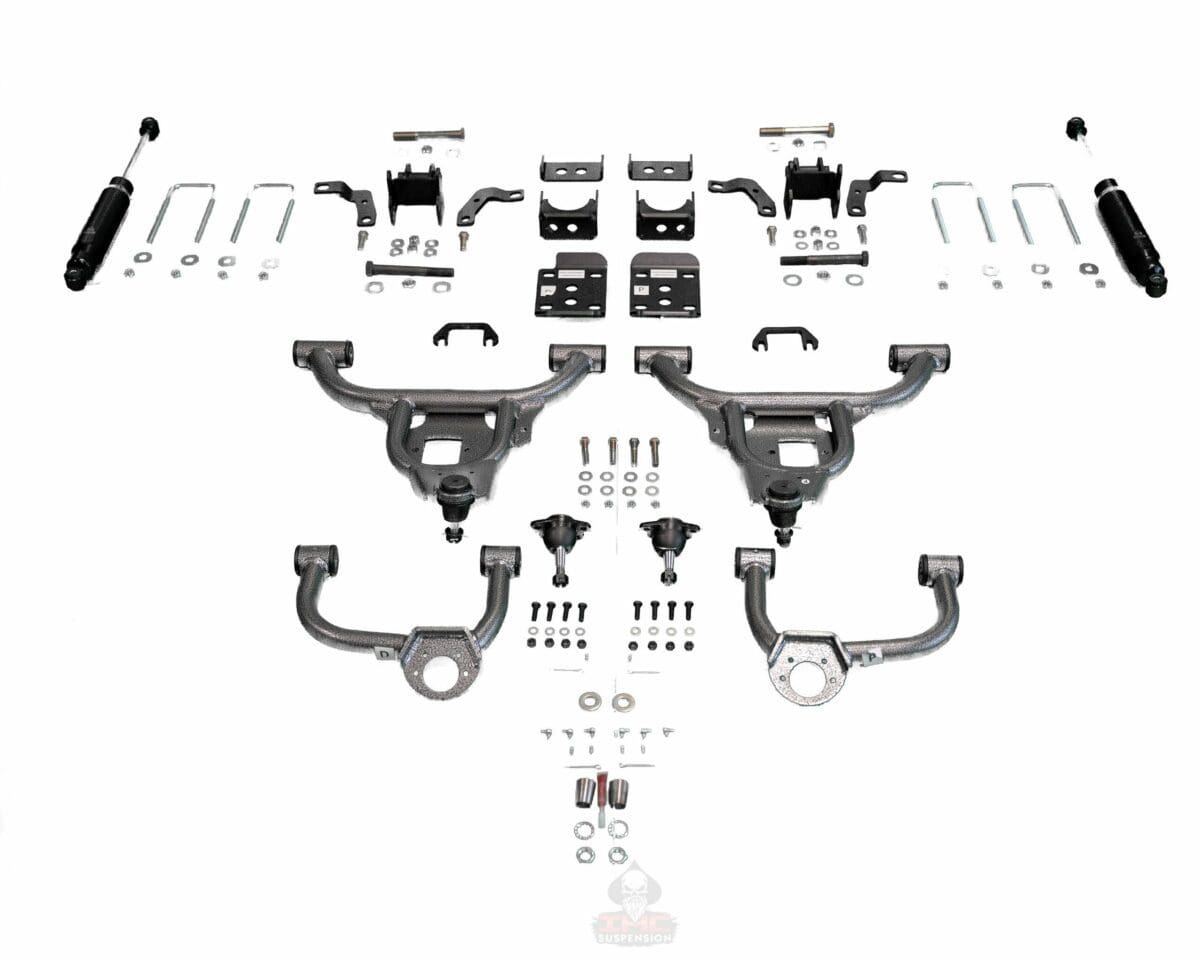

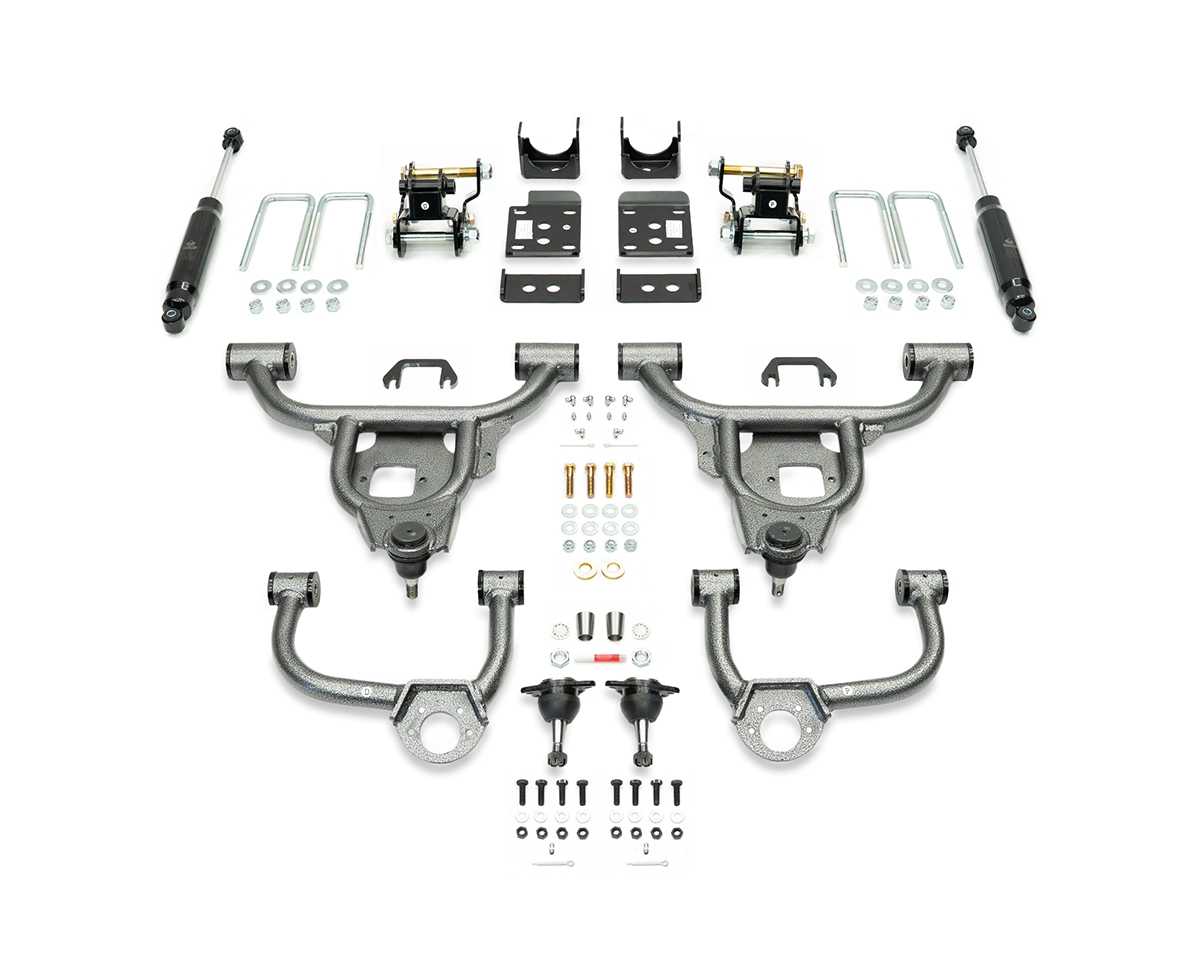

Components

FRONT

  • Upper/Lower control arms
  • New ball Joints
  • New DELRIN bushings
  • Machined sleeve for lower control arm ball joints

REAR

  • Flip kit
  • Drop Shocks
  • 1″ Lift Shackles
  • U-bolt’s w/ Hardware
  • Front Hanger w/ Hardware
PACKAGE WEIGHTS & DIMENSIONS

PACKAGE WEIGHTS & DIMENSIONS

IHC-F2122CA-34

  • WEIGHT: 53 LBS.
  • DIMENSIONS: 20″X20″X10″

IHC-F2122RK4-5

  • WEIGHT: 23 LBS.
  • DIMENSIONS: 20″X6″X6″

IHC-F2122-FLH

  • WEIGHT: 17 LBS.
  • DIMENSIONS: 10″X10″X10″
