2021-PRESENT F-150 4WD SINGLE CAB 3/5 LOWERING KIT (NON VDS)

$1,130.00 price excluding tax

-

IHC Suspension is excited to announce the most complete 2021-Present F150 4wd 3/5 lowering kit in the market. IHC Suspension coming from the service/installation side understood the challenges that other kits were not solving.

Our key features that differentiate us from the competition and save you money:

  • FACTORY RIDE QUALITY
  • Alignment! No notching frame pockets for camber correction.
  • IHC’s control arm aligns to factory specs.
  • Standard upper control arms for camber correction included. (No additional parts needed like camber/caster bushing or offset ball joints to align)
  • IHC’s control arms run Delrin bushings for maximum performance, extended bushing life, and minimal maintenance.
  • IHC’s flip kit has the correct pinion angle built in so no need to use pinion shims.
  • MADE IN THE USA!
  • Manufactured in TEXAS!
  • Lifetime warranty on all metal parts!

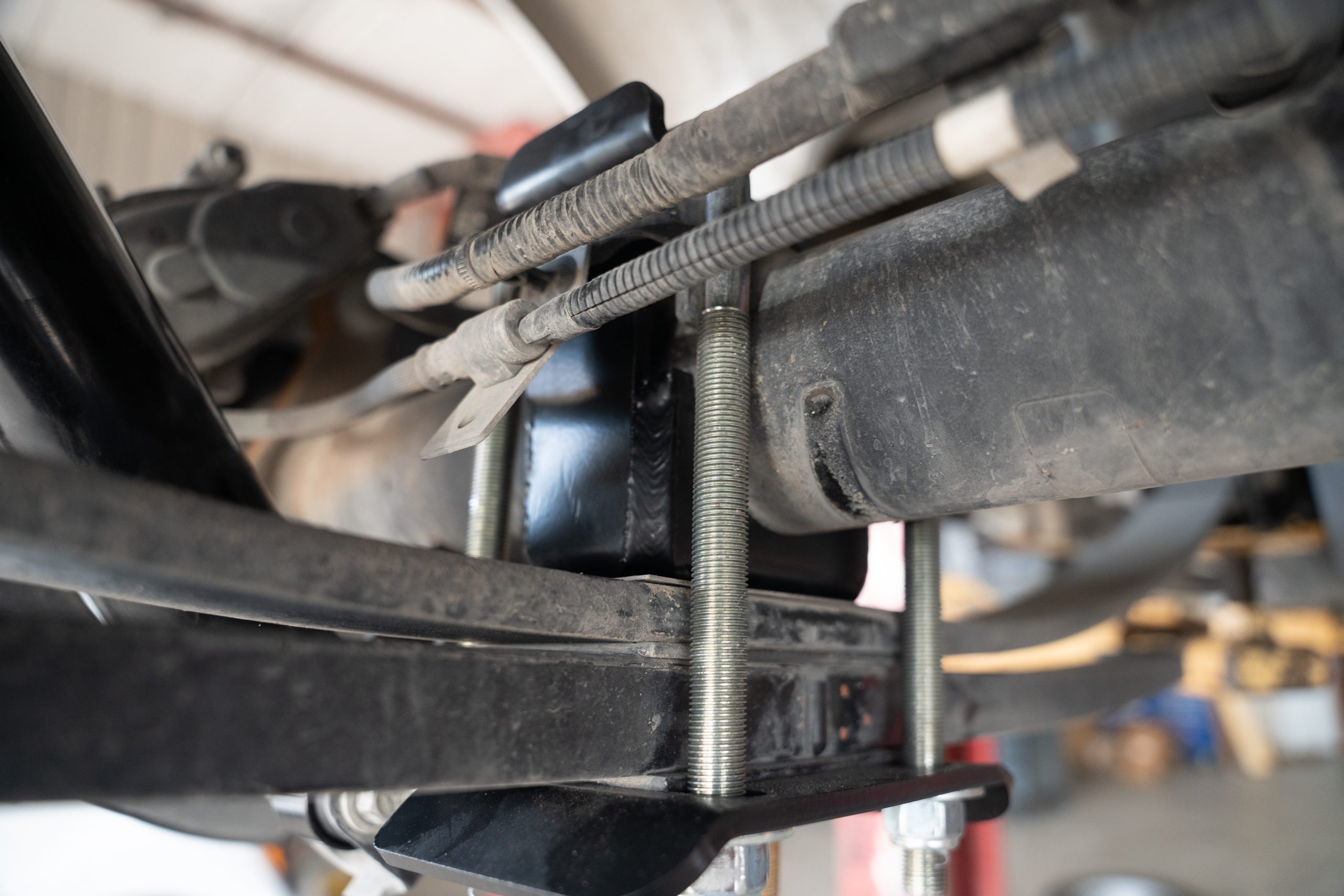

IHC Suspension designed our 2021-Present F150 4wd 3/5 lowering kit with ride quality being the #1 goal. We achieved that by lowering the front end with custom control arms. You achieve the 3” drop with lower control arms, keeping stock springs, shocks, and spindles where OEM ride quality comes from.  Upper control arms are standard in our kit to get your camber back in specs. Most kits require customers to notch frame pockets which are more time-consuming for installers and cost more in labor for the customers. Most times if notching is not done correctly lower control arms will constantly move and throw the alignment off. Not with IHC arms though.  The rear is lowered with a 6” flip kit and 1” lift shackles are provided to set at 5” rear drop. Nitrogen charged drop shocks and new U-bolts are included.



REFER TO FITMENT FOR VDS. If your vehicle does not have these sensors. This lowering kit will kit!

SKU: IHC-F7007-CK Categories: , , , , ,
Additional Information
Weight 87 lbs
Instructions

Instructions

  • Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. IHC Suspension  is NOT responsible for any damage or failure resulting from improper installation



  • Estimated Installation Time: 7 Hours +/- 1 hour (excluding alignment)





Front Installation Instructions (CLICK HERE)

Rear Installation Instructions (CLICK HERE)



Fitment

Fitment

WILL NOT WORK WITH VEHICLES EQUIPPED WITH VEHICLE DYNAMIC SYSTEM (VDS)

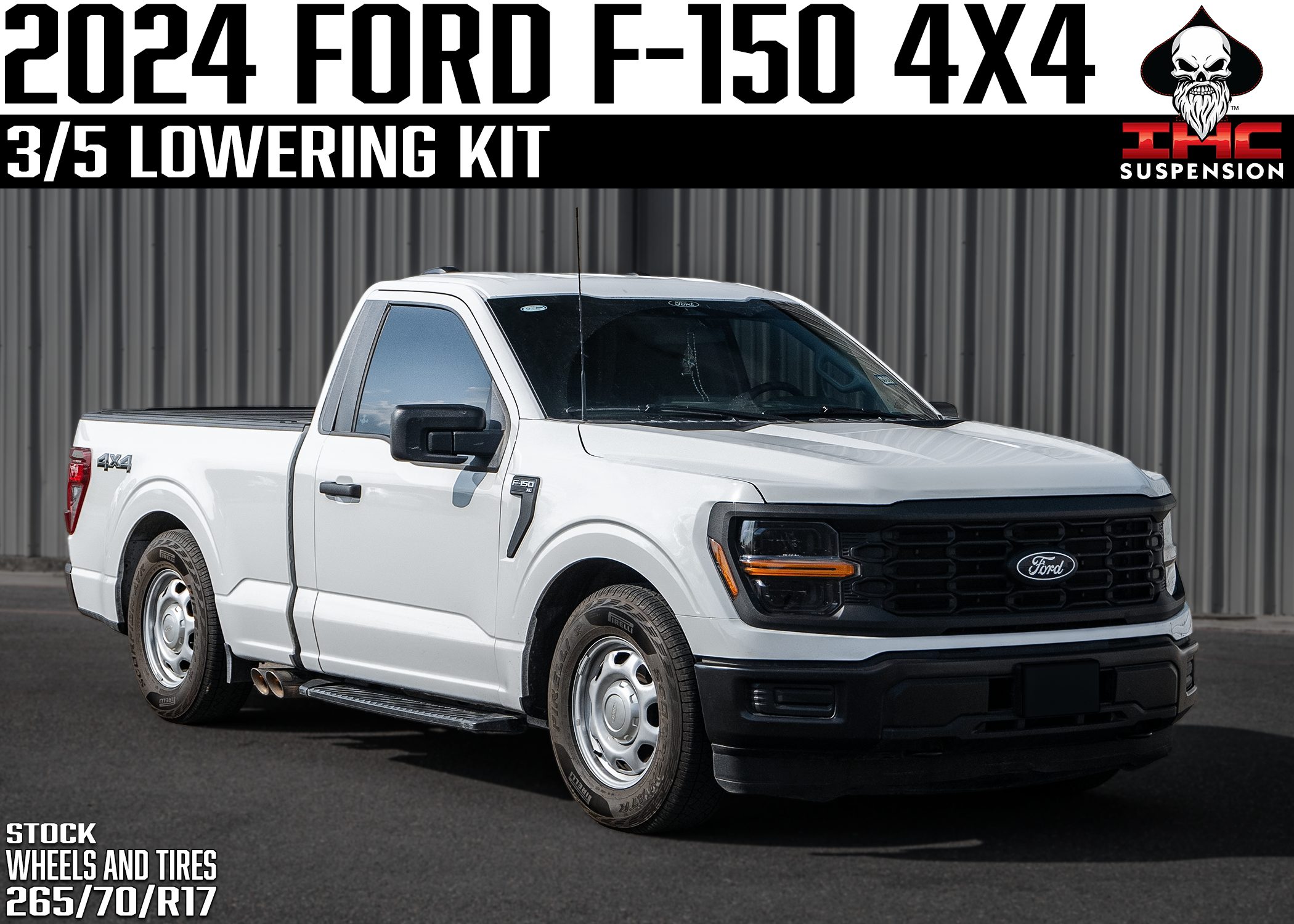

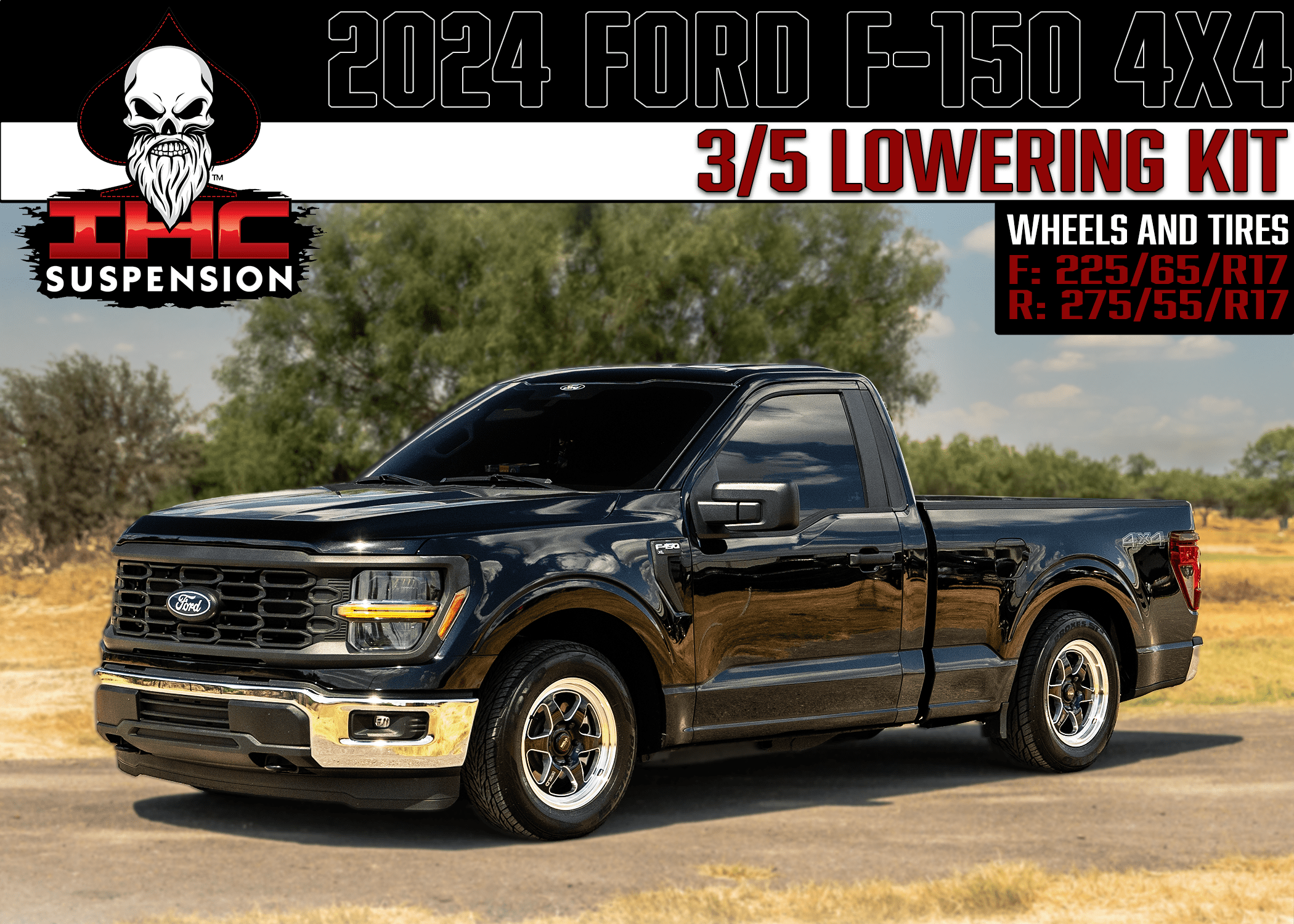

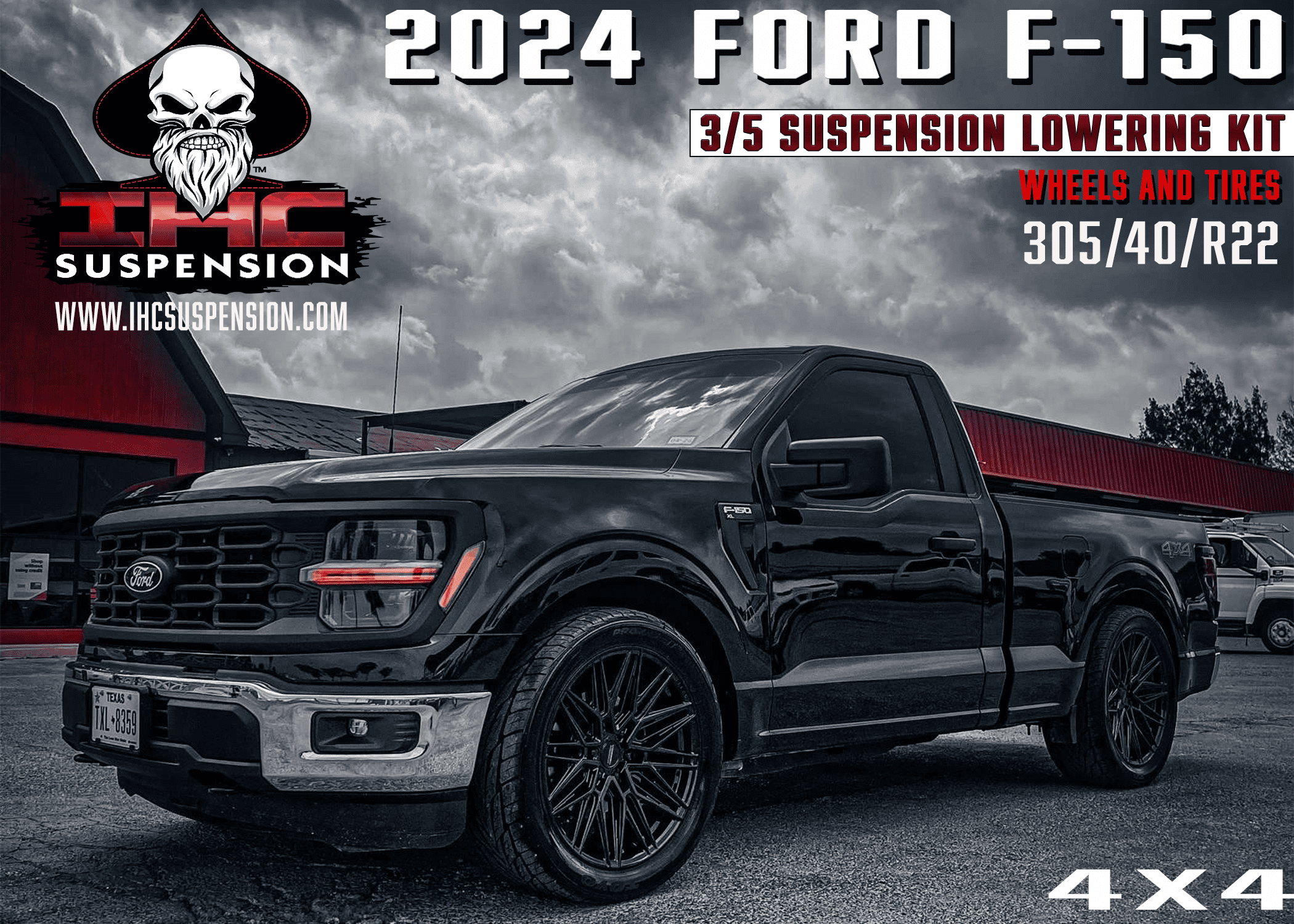

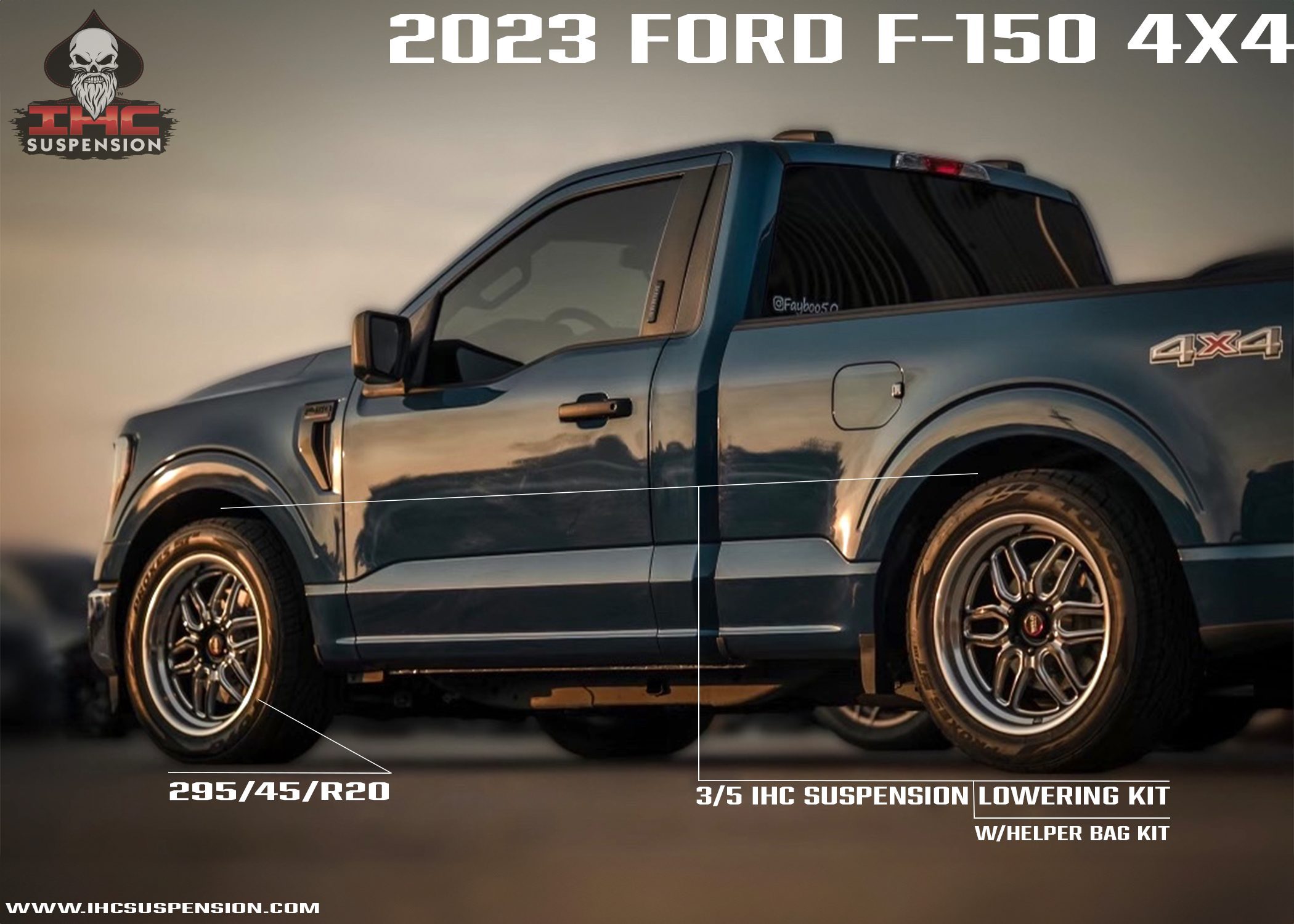

RECOMMENDED WHEEL/TIRE SIZE

  • STOCKS
  • 22’s –  285/45/22
  • 24’s – 295/35/24
  • Larger wheels recommend to check with local suspension shop



Has not been tested on long beds.

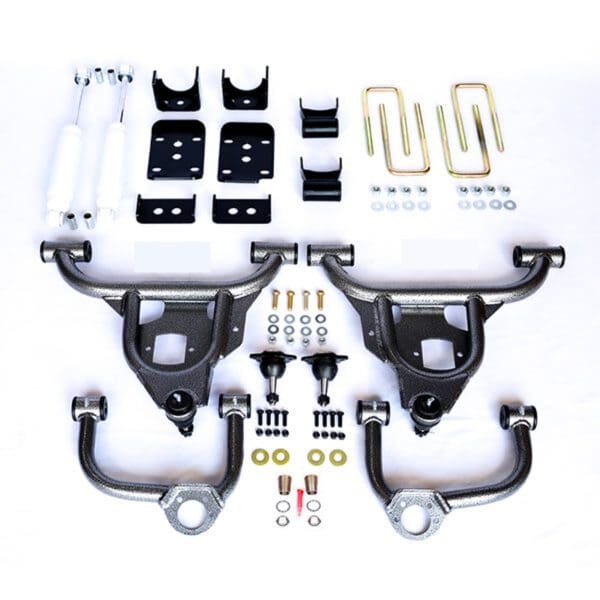

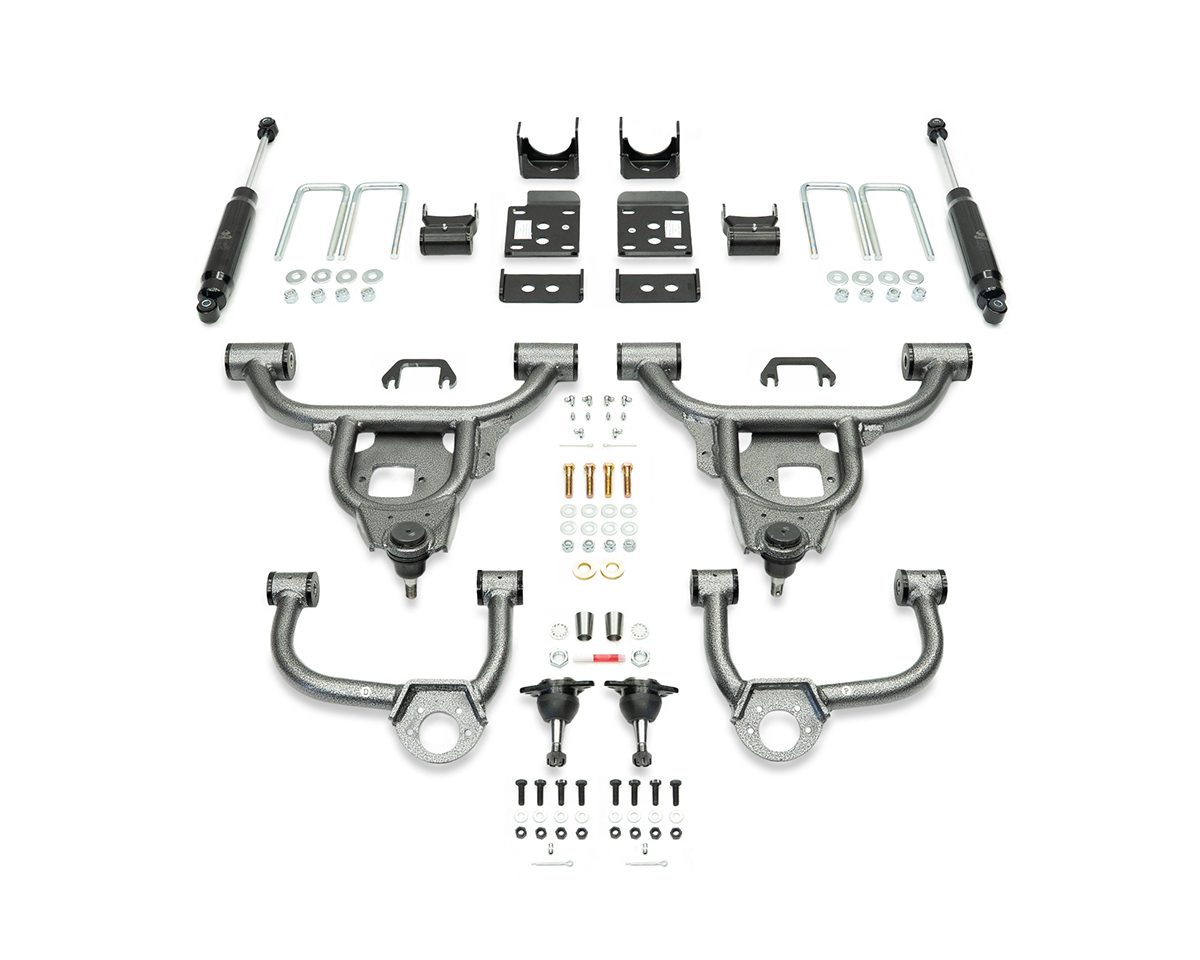

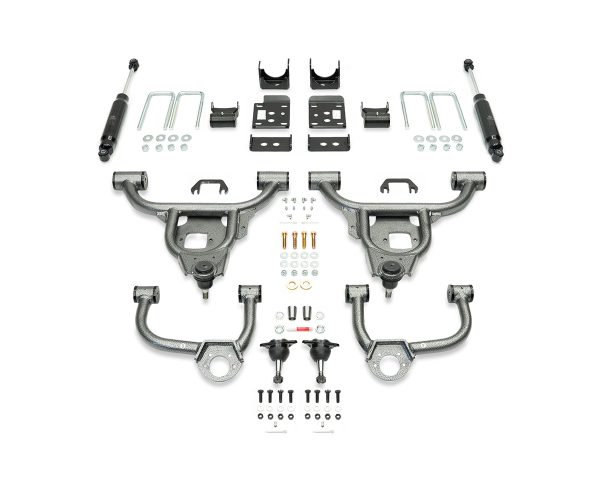

Components

Components

FRONT

  • Upper/Lower control arms
  • New ball Joints
  • New DELRIN bushings
  • Machined sleeve for LCA BJ

REAR

  • Flip kit
  • Drop Shocks
  • 1″ Lift Shackles
  • U-bolts w/ Hardware
PACKAGE WEIGHTS & DIMENSIONS

PACKAGE WEIGHTS & DIMENSIONS

IHC-F2122CA-34

  • WEIGHT: 53 LBS.
  • DIMENSIONS: 20″X20″X10″

IHC-F2122RK4-5

  • WEIGHT: 23 LBS.
  • DIMENSIONS: 20″X12″X6″
