1988-1998 C1500 3/5 LOWERING KIT W/ WELD ON C-NOTCH

$1,215.00 price excluding tax

-

IHC Suspension is excited to introduce the most complete C1500 lowering kits in the market. IHC’s kit has all the features that most of our competitors just do not have.

Our key features that differentiate us from the competition:

  • Kill 2 birds with 1 stone. Not only are you lowering the truck but also replacing your 25+ year old ball joints and bushings with IHC control arms.
  • IHC’s control arms have a track width reduced by ¾” to allow more tire to fender clearance for turning. Giving the customer more wheel and tire options. Most spindles pop out factory track width ½” to ¾”.
  • IHC’s flip kit has the correct pinion angle built in so no need to use pinion shims.
  • Weld on C-notch!
  • All MADE IN USA! Manufactured in TEXAS!
  • Lifetime warranty on all metal parts!

IHC’s 3/5 C1500 lowering kit consist of 3” lowering control arms (upper and lower). The rear consists of flip kit, drop shocks, shock extenders, 1″ lift shackles and weld on under bed C-notch. All IHC suspension parts are fiber laser cut, CNC bend, and robotically welded for precise quality.

SKU: IHC-GM8898CK-35W Categories: , , , [social_share_list]
Additional Information
Weight 91 lbs
INSTALLATION INSTRUCTIONS

INSTALLATION INSTRUCTIONS

  • Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. IHC Suspension  is NOT responsible for any damage or failure resulting from improper installation



  • Estimated Installation Time: 9 Hours +/- 1 hour (excluding alignment)



FRONT INSTRUCTIONS (CLICK HERE)

FITMENT

FITMENT

FITS 2WD COIL SPRING VEHICLE ONLY

DOES NOT FIT 4WD, LONG BED MODELS, OR 454 SS MODELS.

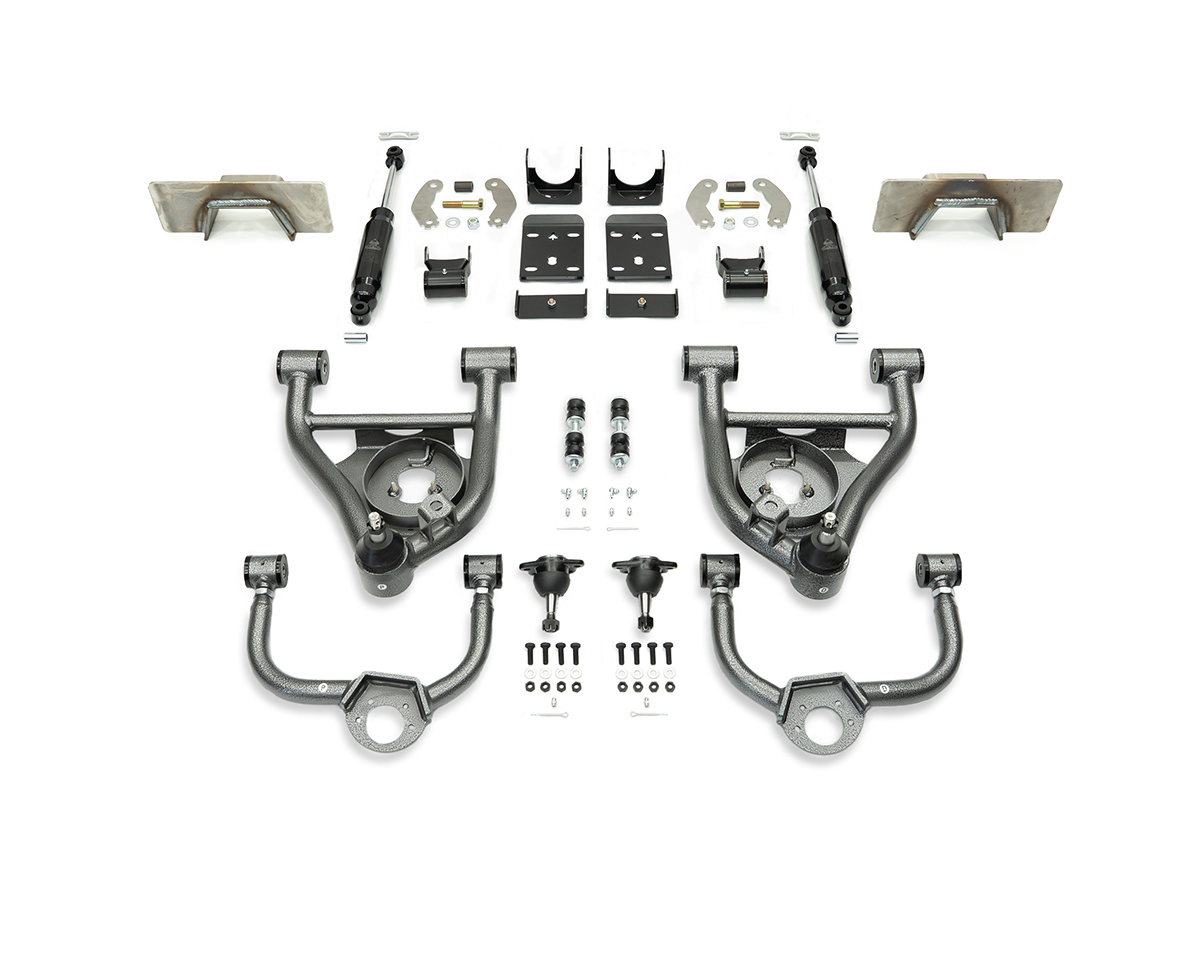

KIT COMPONENTS

KIT COMPONENTS

FRONT

  • 3” Lowering control arms (upper and lower)
  • Shorter sway bar link

REAR

  • Flip kit
  • 1″ Lift Shackles
  • Drop shocks
  • Shock extenders
  • Weld on under bed C notch
PACKAGE WEIGHTS & DIMENSIONS

PACKAGE WEIGHTS & DIMENSIONS

IHC-GM8898CA-3

  • WEIGHT: 59 LBS
  • DIMENSIONS: 20″x20″x10″

IHC-GM8898RK-5-W

  • WEIGHT: 32 LBS
  • DIMENSIONS: 20″x12″x6″
