2009-2018 RAM 1500 2WD 3/5 LOWERING KIT

$1,385.00 price excluding tax

-

IHC Suspension is excited to announce the most complete 2009-2018 RAM 1500 2WD 3/5 lowering kit in the market. IHC Suspension coming from the service/installation side understood the challenges that other kits were not solving.

Our key features that differentiate us from the competition and save you money:

  • FACTORY RIDE QUALITY
  • Alignment! No notching frame pockets for camber correction.
  • IHC’s control arm aligns to factory specs.
  • Adjustable upper control arms for camber correction included. (No additional parts needed like camber/caster bushings or offset ball joints to align)
  • IHC’s control arms run Delrin bushings for maximum performance, extended bushing life, and minimal maintenance.
  • Relocation brackets (cut kit) keep rear end geometry to OEM specs.
  • NO SWAYING/HIGH-SPEED WOBBLE
  • MADE IN THE USA!
  • Manufactured in TEXAS!
  • Lifetime warranty on all metal parts!

IHC Suspension designed our 2009-2018 RAM 1500 2WD 3/5 lowering kit with ride quality being the #1 goal. We achieved that by lowering the front end with custom control arms. You achieve the 3” drop with our 4″ lower control arm and 1″ spring isolator.  You keep stock springs, shocks, and spindles where OEM ride quality comes from. Upper control arms are standard in our kit to get your camber back in specs. Most kits require customers to notch frame pockets which are more time-consuming for installers and more money for labor to customers. Most times if notching is not done correctly lower control arms will constantly move and throw the alignment off. Not with IHC arms though.

The rear is lowered with 4” progressive springs that are required to be trimmed from the topside to achieve a 5”, 6”, or 7” drop. Keep in mind these are progressive springs and are the only springs in the industry that can be cut and will NOT affect ride quality. The dropdown trac bar bracket and shorter sway bar links are included to correct angles. The key feature of this kit is the 4 link relocation brackets. These brackets re-center the rear end to the fender well, correcting pinion angle. Eliminating high-speed wobble and swaying.



Why the CUT KIT relocation brackets?



Cut Kit is recommended for 5”, 6”, and 7” rear drops. This will allow more travel from the frame to the axle and prevent bottoming out.  With the Cut Kit, you are cutting the OEM upper trailing arm bracket to allow more travel.





SKU: IHC-R0918CK2-35 Categories: , , , , , , , ,
FITMENT

FITMENT

  • Will NOT fit TRX, Long Bed, or Air Ride
  • For 2WD ONLY All Cabs

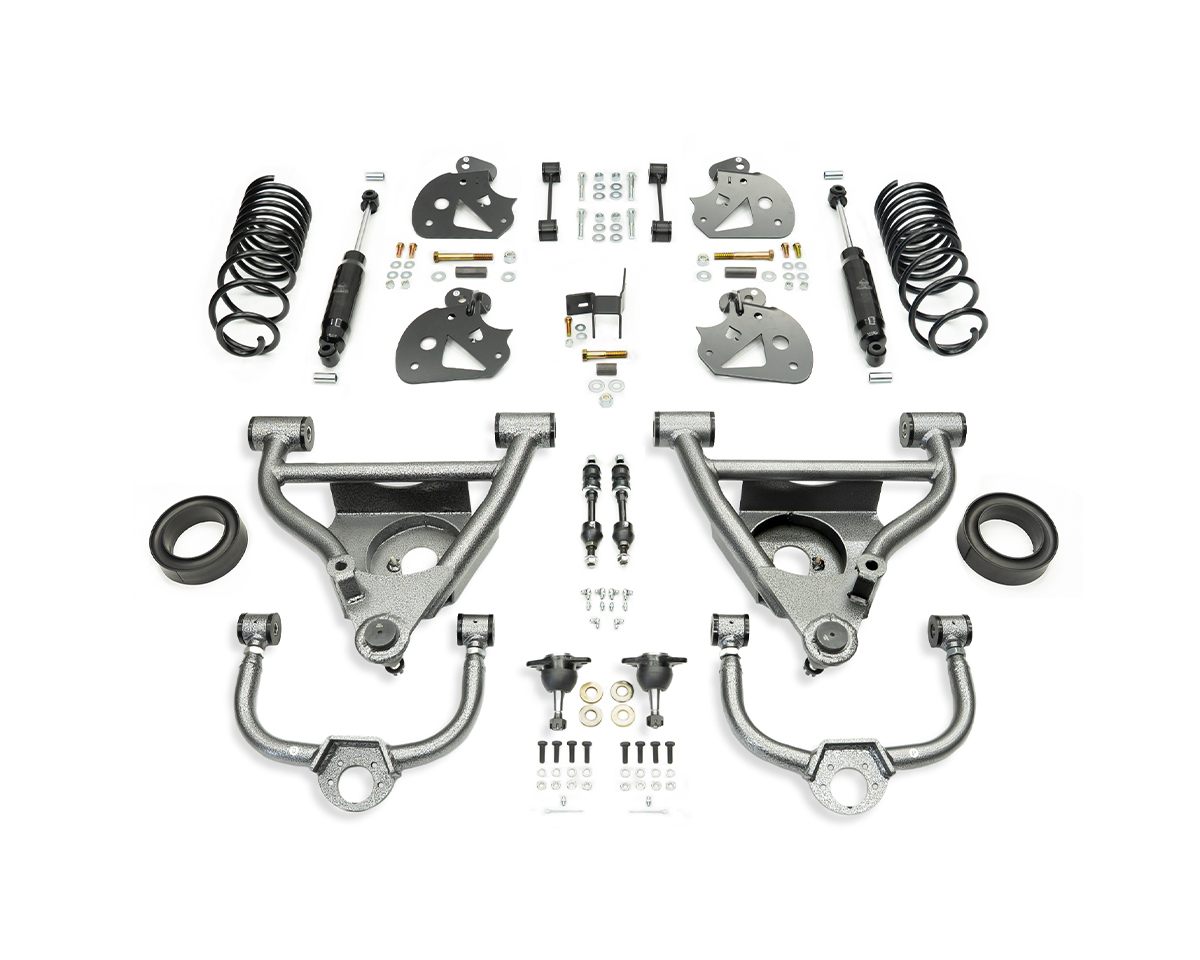

KIT COMPONENTS

KIT COMPONENTS

FRONT

  • Lowering Control Arms (Uppers & Lowers)
  • 1″ Isolators
  • Ball Joints

REAR

  • 4″ Progressive Springs
  • Drop Shocks
  • Trac Bar Bracket
  • Rear Sway Bar Links
  • 4 Link Relocation Brackets (Cut Kit)
PACKAGE WEIGHTS & DIMENSIONS

PACKAGE WEIGHTS & DIMENSIONS

IHC-R0918CA2-45

  • WEIGHT: 66 LBS.
  • DIMENSIONS: 20″*20″*10″

IHC-R0918CS-4

  • WEIGHT: 34 LBS.
  • DIMENSIONS: 20″*12″*6″

IHC-R0918-C/K

  • WEIGHT: 15 LBS.
  • DIMENSIONS: 10″*10″*10″

IHC-R0918IS-1″

  • WEIGHT: 3 LBS.
  • DIMENSIONS: 9″*5″*3″
