1999-2006 (2007 CLASSIC) GM 2WD 5/7 LOWERING KIT W/ WELD ON C-NOTCH

$1,160.00 price excluding tax

-

IHC Suspension is excited to introduce the most complete 1999-2006 (2007 Classic) lowering kits in the market. IHC’s kit has all the features that most of our competitors just do not have. Our key features that differentiate us from the competition:

  • Kill 2 birds with 1 stone. Not only are you lowering the truck but also replacing your 15+-year-old ball joints and bushing with IHC control arms.
  • IHC integrates the notorious 1999-2006 Chevy LEAN! What is the Chevy lean? Most customers find out the hard way. 1999-2006 models were known for the driver’s side being 1 full inch lower which is most noticeable after lowering the pickup truck. IHC as a previous installation shop understood the frustration. When engineering, we designed and developed our 1999-2006 control arms with a correction for the Chevy lean in mind. That was a must have to make the pick-up truck sit level. HOW? Driver side springs pocket is not as deep as passenger side making all 4 corners sit level.
  • IHC’s flip kit has the correct pinion angle built in so no need to use pinion shims.
  • Weld on C-notch!
  • All MADE IN USA!
  • Manufactured in TEXAS!
  • Lifetime warranty on all metal parts!

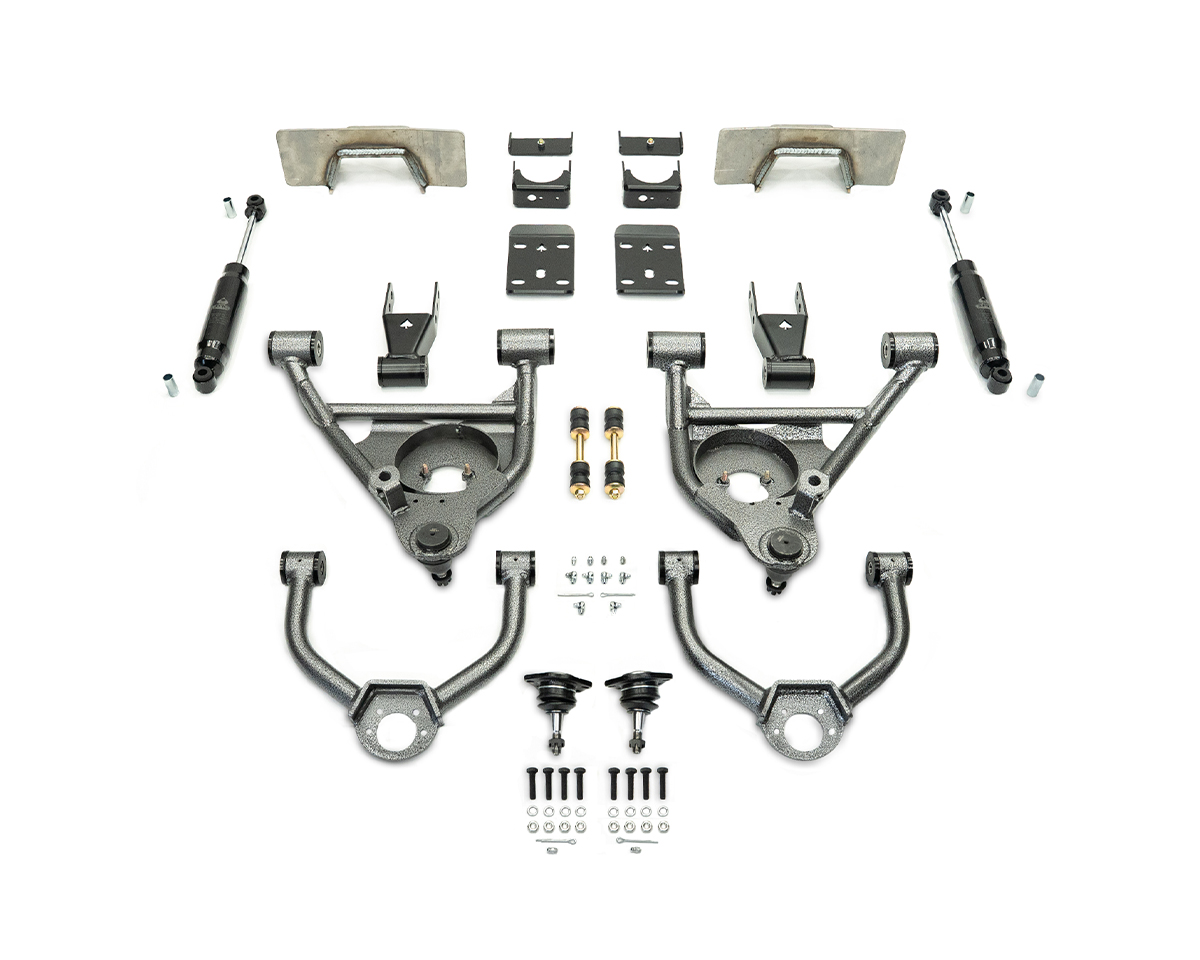

IHC’s 1999-2006 (2007 Classic) 5/7 lowering kit consists of 5” lowering control arms (upper and lower). The rear consists of a flip kit, drop shocks, and weld on under bed C-notch. All IHC suspension parts are fiber laser cut, CNC bend, and robotically welded for precise quality.

SKU: IHC-GM9906CK-57W Categories: , , , , , , , ,
Additional Information
Weight 103 lbs
FITMENT

FITMENT

RECOMMENDED WHEEL/TIRE SIZE

  • 4/6 tallest tire 30.5″
  • 5/7 tallest 29.3″
  • Larger wheels recommend to check with local suspension shop
  • Fits all 2wd coil spring front suspension
  • WILL NOT WORK ON TORSION KEY SUSPENSION or 4WD
Kit Components

Kit Components

FRONT

  • 5” Lowering control arms (upper and lower)
  • Shorter sway bar link

REAR

  • Flip kit
  • Drop shocks
  • Weld on under bed C-notch
  • Lowering shackles
PACKAGE WEIGHTS & DIMENSIONS

PACKAGE WEIGHTS & DIMENSIONS

IHC-GM9906CA-45

  • WEIGHT: 56 LBS.
  • DIMENSIONS: 20*20*10

IHC-GM9906RK-7-W

  • WEIGHT: 44 LBS.
  • DIMENSIONS: 20*12*6
INSTRUCTIONS

INSTRUCTIONS

  • Please read instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. IHC Suspension is NOT responsible for any damage or failure resulting from improper installation.
  • Estimated Installation Time: 9 Hours +/- 1 hour (excluding alignment)

Front Instructions (CLICK HERE)

Rear Instructions (CLICK HERE)
