2007-2016 GM1500 (CAST) 3/5 LOWERING KIT EXTENDED/CREW CAB

$790.00 price excluding tax

-

IHC Suspension is excited to introduce the most complete 2007-2016 GM1500 3/5 Extended/Crew Cab lowering kit in the market. This kit was designed for the customer wanting to lower his truck but not too low where he can still run stock tires with minimal to no rubbing.  IHCs kit has all the features that most of our competitors just do not have.

Our key features that differentiate us from the competition:

  • Easy installation. (No need to disassemble strut assembly)
  • 100% bolt on
  • NO additional parts for alignment which saves the customer money
  • Alignment
  • Replaced lower control arm ball joint and bushing
  • MADE IN THE USA
  • Manufactured in TEXAS
  • Lifetime warranty on all METAL parts



IHC’s 2007-2016 GM1500 3/5 Extended/Crew Cab lowering kit consists of 3” front lower control arms, strut spacers for easy height adjustment, and sway bar links. This allows for a simple replacement of the lower control arms. No need to disassemble the strut assembly. The rear end consists of the reverse hanger with hardware, nitrogen drop shocks, and flip kit.  All IHC suspension parts are fiber laser cut, CNC bend, and robotically welded for precise quality.

SKU: IHC-GM0713CK-35CC Categories: , , , , , , , , ,
Additional Information
Weight 67 lbs
Instructions

Instructions

  • Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. IHC Suspension  is NOT responsible for any damage or failure resulting from improper installation



  • Estimated Installation Time: 6.0 Hours +/- 1 hour (excluding alignment)



FRONT INSTRUCTIONS (CLICK HERE)

REAR INSTRUCTIONS (CLICK HERE)

FITMENT

FITMENT

RECOMMENDED TIRE SIZE

  • STOCKS 18’s or 20’s
  • 22 285/45/22
  • 24’s – 295/35/24
  • Larger wheel recommend to check with local tire shops

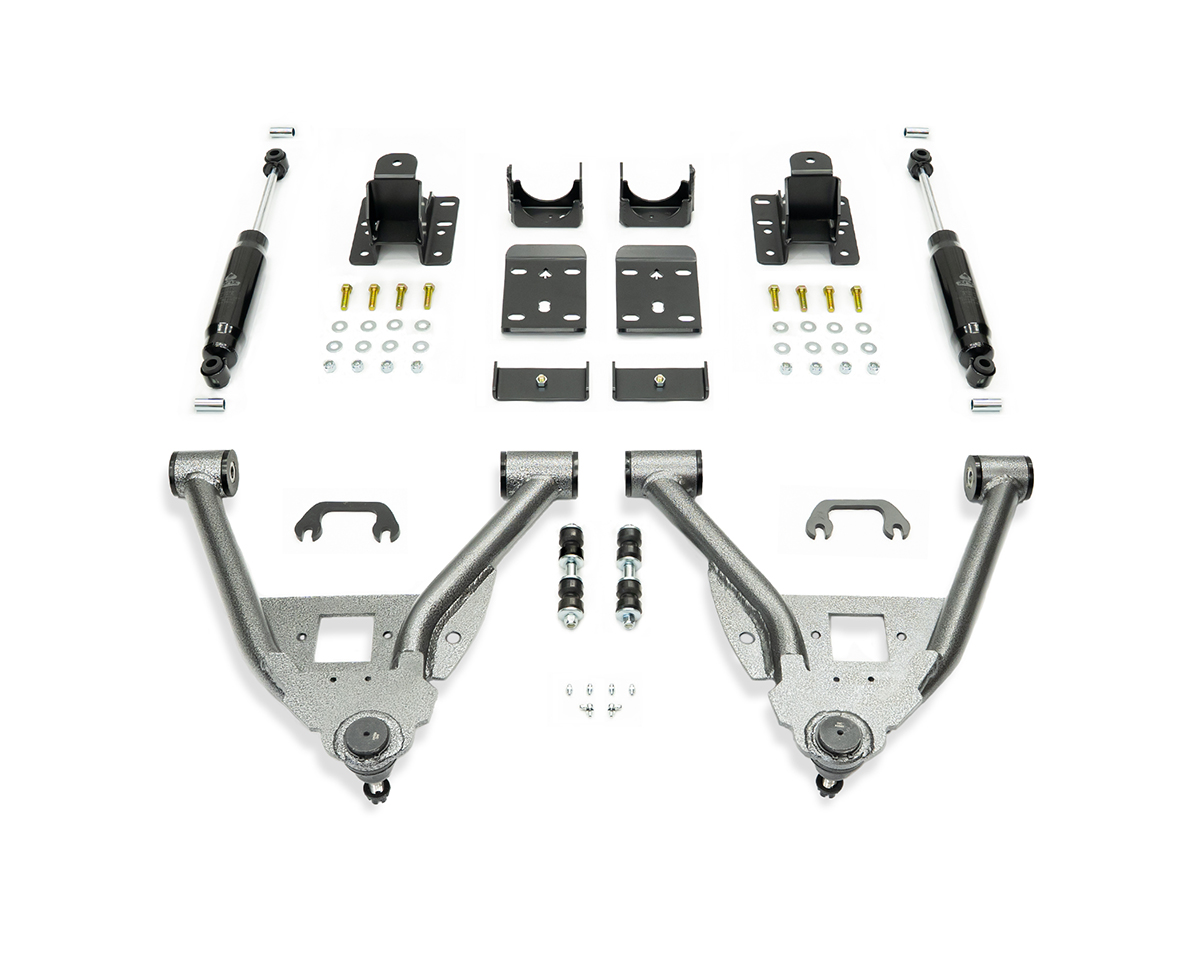

Kit Components

Kit Components

FRONT

  • 3” Lowering control arms (ONLY lowers)
  • Spacers
  • Shorter sway bar link

REAR

  • Flip kit
  • Drop shocks
  • Reverse Hanger w/ Hardware
PACKAGE WEIGHTS & DIMENSIONS

PACKAGE WEIGHTS & DIMENSIONS

IHC-GM0713LCA-3

  • WEIGHT: 39 LBS.
  • DIMENSIONS: 20″X20″X10″

IHC-GM0718RK-5CC

  • WEIGHT: 28 LBS.
  • DIMENSIONS: 20″X6″X6″
