2019-PRESENT GM1500 DENALI 3/5 LOWERING KIT W/ HELPER BAGS

$1,800.00 price excluding tax

-

IHC Suspension is excited to announce the most complete 2019 – Present Denali 3/5 lowering kit in the market. IHC Suspension coming from the service/installation side understood the challenges that other kits were not solving.

Our key features that differentiate us from the competition and save you money:

  • FACTORY RIDE QUALITY
  • Alignment! No notching frame pockets for camber correction.
  • NO C-NOTCH
  • IHC’s control arm aligns to factory specs.
  • Standard upper control arms for camber correction included. (No additional parts needed like camber/caster bushings or offset ball joints to align)
  • IHC’s control arms run Delrin bushings for maximum performance, extended bushing life, and minimal maintenance.
  • IHC’s flip kit has the correct pinion angle built in so no need to use pinion shims.
  • Standard helper bag kit included.
  • MADE IN THE USA!
  • Manufactured in TEXAS!
  • Lifetime warranty on all metal parts!
  • This will not fit long bed models.

IHC Suspension designed our 2019-Present Denali 3/5 lowering kit with ride quality being the #1 goal. We achieved that by lowering the front end with custom control arms. You achieve the 3” drop with our lower control arms, keeping stock springs, shocks, and spindles where OEM ride quality comes from. Upper control arms are standard in our kit to get your camber back in specs. Most kits require customers to notch frame pockets which are more time-consuming for installers and cost more in labor for the customer. Most times if notching is not done correctly lower control arms will constantly move and throw the alignment off. Not with IHC arms though.  The rear is lowered with a 6” flip kit and 1” lift shackles are provided to set at a 5” rear drop New U-bolts, shock extenders, and Denali bracket (for Denali models) are included. Standard helper bag kit is also included. This will prevent customers from bottoming out. We recommend 10-15 psi in bags at all time. All IHC Suspension parts are fiber laser cut, CNC bend, and robotically welded for precise quality.

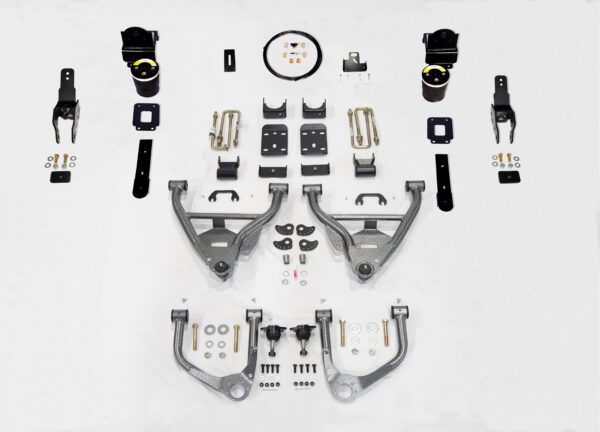

KIT COMPONENTS

KIT COMPONENTS

FRONT

  • Lowering control arms
  • Ball joints
  • Machined Sleeve
  • Alignment Locks x4
  • UCA Hardware
  • Loc-Tite Packet
  • Bushing Rebuild kit

REAR

  • Flip kit
  • 1” Lift Shackles
  • U bolts
  • Helper Bag kit

DENALI KIT

  • Shocks extenders
  • Denali brackets w/ hardware
Installation Instructions

Installation Instructions

  • Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. IHC Suspension is NOT responsible for any damage or failure resulting from improper installation.



  • Estimated Installation Time: 7.0 Hours +/- 1 hour (excluding alignment)



PDF Front Installation Instructions (CLICK HERE)

PDF Rear Installation Instructions (CLICK HERE)

PDF INSTRUCTIONS DENALI (CLICK HERE)

Fitment

Fitment

  • This kit will not fit long beds
  • This kit will not fit vehicle equipped with single leaf pack. Refer to pic below.

Package Weight & Dimension

Package Weight & Dimension

IHC-GM1922CA-3

  • WEIGHT: 59 LBS.
  • DIMENSIONS: 20*X20*X10*

IHC-DENALI -GM1922RK-5

  • WEIGHT: 28 LBS.
  • DIMENSIONS: 20*X6*X6*

IHC-GM1922-HBK

  • WEIGHT: 27 LBS.
  • DIMENSIONS: 14″*X14*X10*
